Oil Baffle Assembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the nuts in two steps.
    1. Tighten nuts A to 5.0 N.m {51.0 kgf.cm, 44.3 in-lbf}, then nuts B to 15.0 N.m {153 kgf.cm, 133 in.lbf}.
    2. Tighten 45° using the SST.

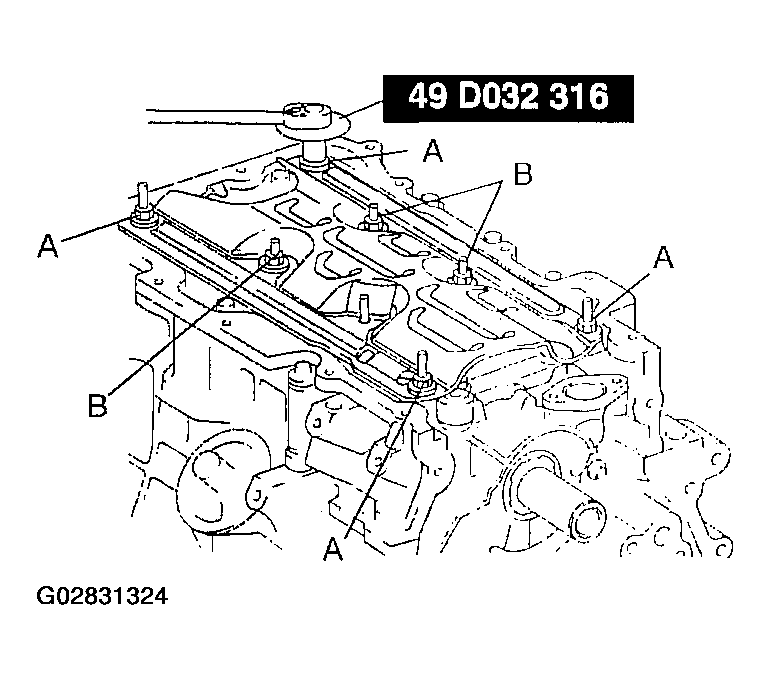

      Fig 1: Oil Baffle Bolt Identification
      G02831324Courtesy of MAZDA MOTORS CORP.
