Piston, Connecting Rod Assembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the end gap of each ring as indicated in the figure.
    Fig 1: Positioning Piston Ring End Gap
    G02831319Courtesy of MAZDA MOTORS CORP.
  2. Insert the piston and connecting rod into the cylinder with the arrow mark to front of the engine.

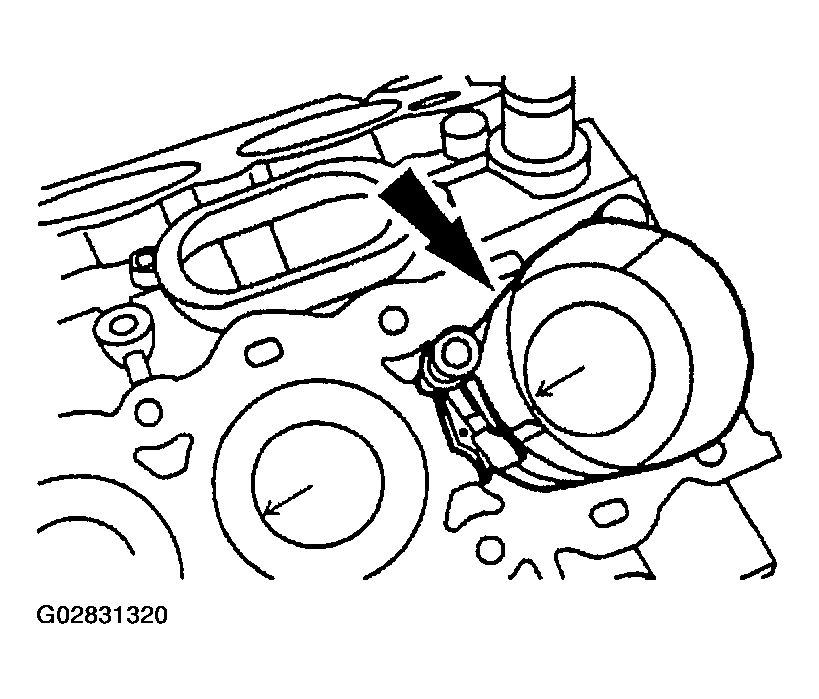

    Fig 2: Installing Piston To Cylinder Block
    G02831320Courtesy of MAZDA MOTORS CORP.
