Connecting Rod Side Clearance Inspection
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

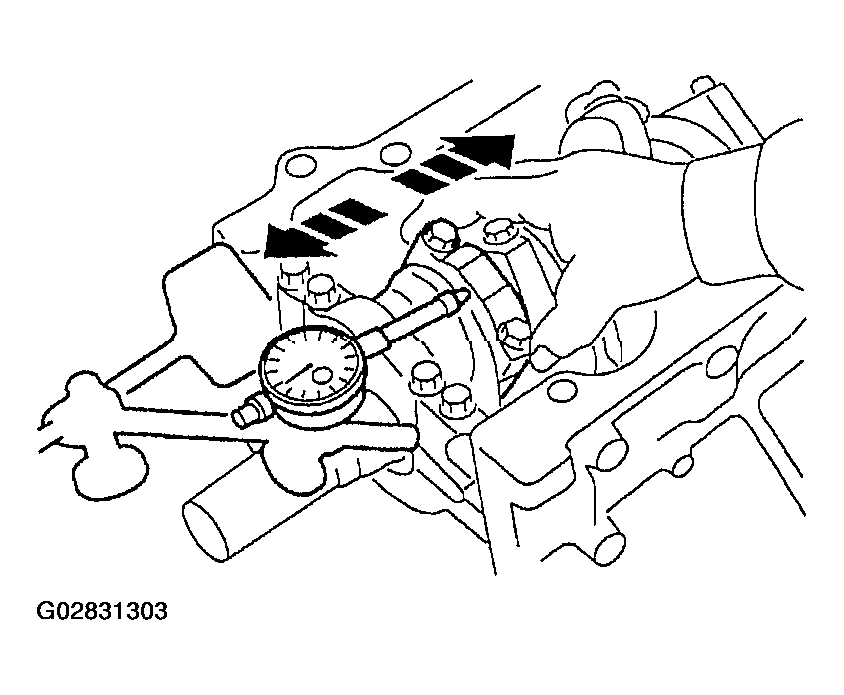

- Measure the connecting rod large end side clearance.
- If the connecting rod side clearance exceeds the maximum clearance, replace the connecting rod and cap.
Standard Clearance
0.10-0.30 mm {0.004-0.011 in}
Maximum Clearance
0.35 mm {0.013 in}
