Pilot Bearing Installation Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Install a new pilot bearing using a SST.

Bearing Installation Depth

0-0.4 mm {0-0.015 in}

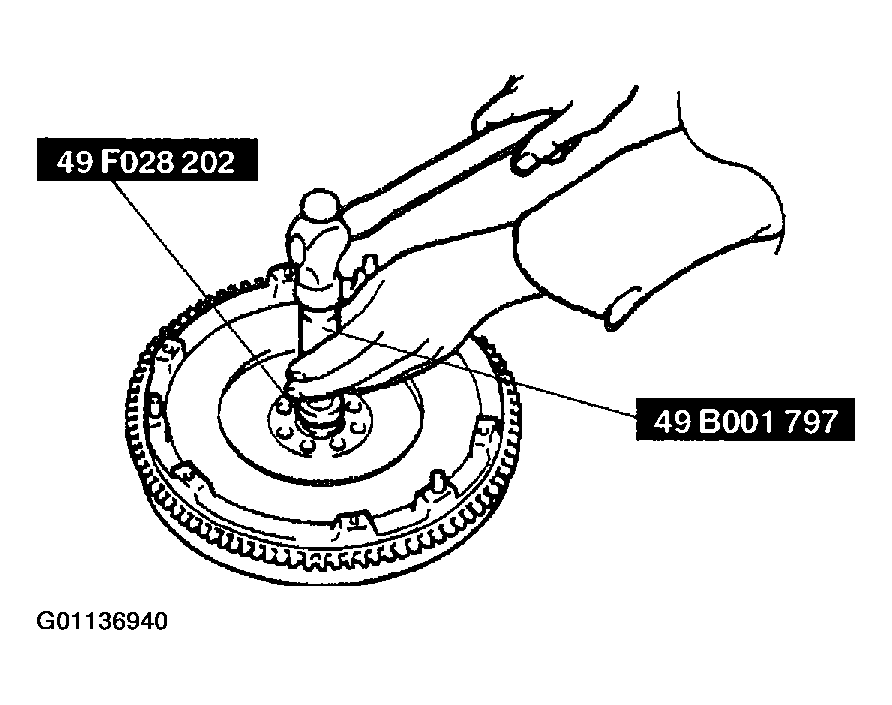

Fig 1: Installing Pilot Bearing

Courtesy of MAZDA MOTORS CORP.
