Clutch Cover Installation Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Install the SSTs.
Tighten the bolts evenly and gradually in a crisscross pattern.

Tightening Torque

18-26 N.m {1.8-2.7 kgf.m, 14-19 ft.lbf}

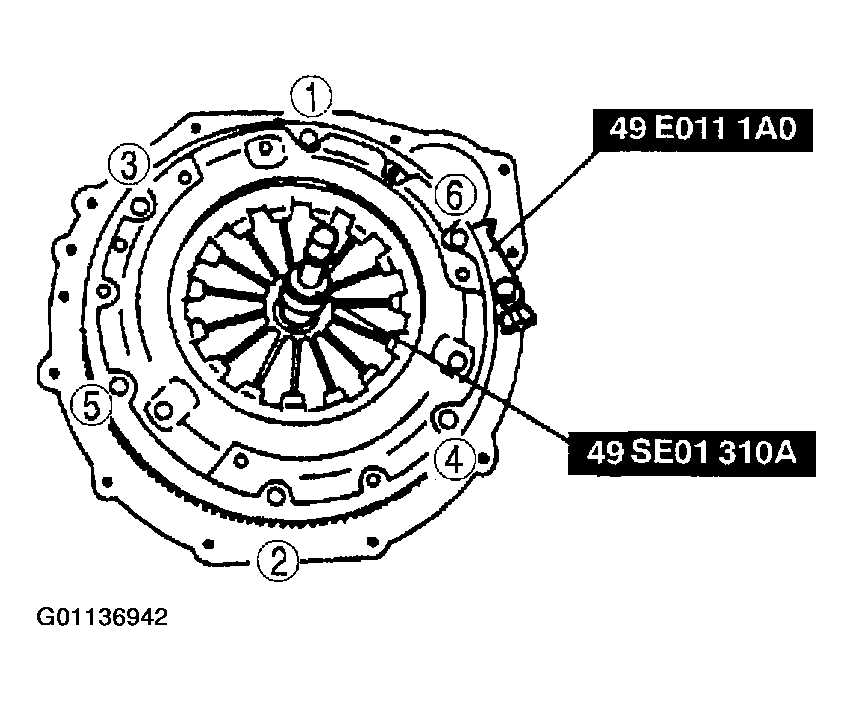

Fig 1: Installing Clutch Cover

Courtesy of MAZDA MOTORS CORP.
