Clutch Pedal Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the lower panel.
  3. Remove in the order indicated inFig 1 .
  4. Install in the reverse order of removal.

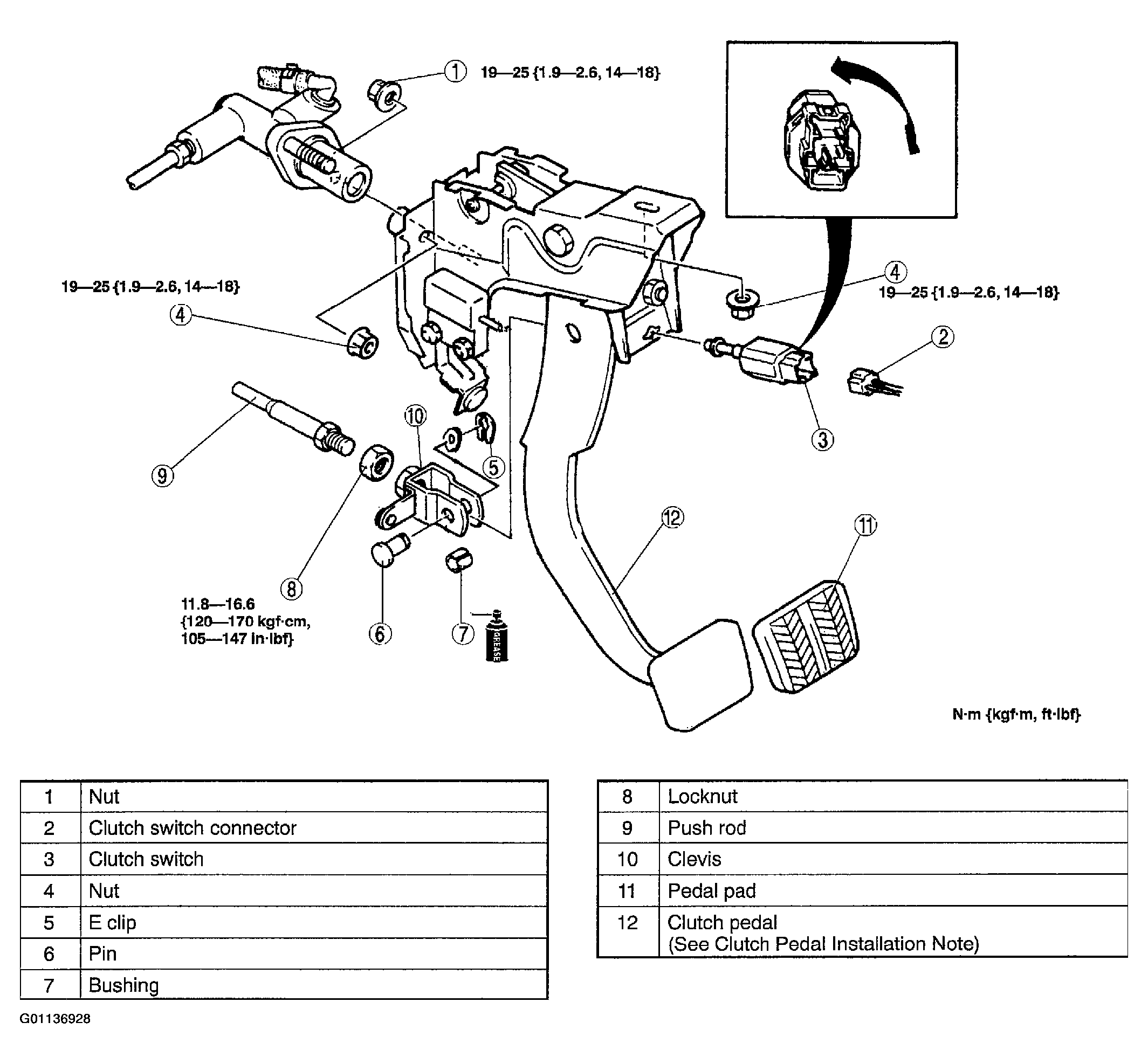

Fig 1: Removing/Installing Clutch Pedal
G01136928Courtesy of MAZDA MOTORS CORP.
