Clutch Pedal Free Play

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Gently depress the clutch pedal by hand until clutch resistance is felt, and measure the pedal free play.
- If necessary, adjust the pedal free play by turning locknut C and adjusting push rod D.
Pedal Free Play

1.0-3.0 mm {0.04-0.11 in}

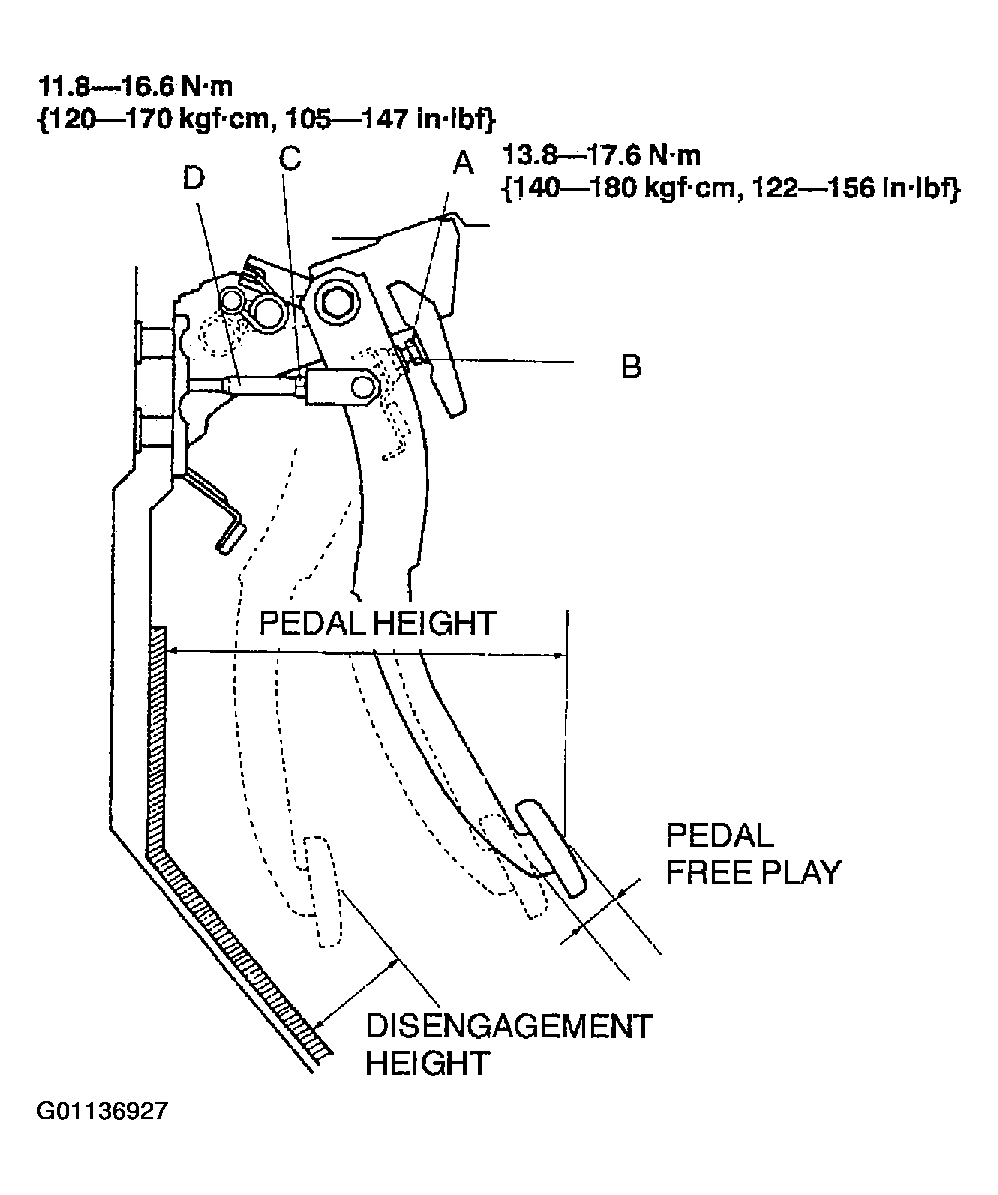

Fig 1: Verifying Clutch Pedal Free Play
Courtesy of MAZDA MOTORS CORP.
Verify that the disengagement height (from the upper surface of the pedal pad to the carpet) is correct when the pedal is fully depressed.

Minimum Disengagement Height

38 mm {1.50 in} (With Carpet)
