Clutch Disc Inspection

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Using vernier calipers, measure the thickness of the lining at a rivet head on both sides.
- Replace the clutch disc if its thickness is less than the minimum.
Thickness

0.3 mm {0.012 in} min.

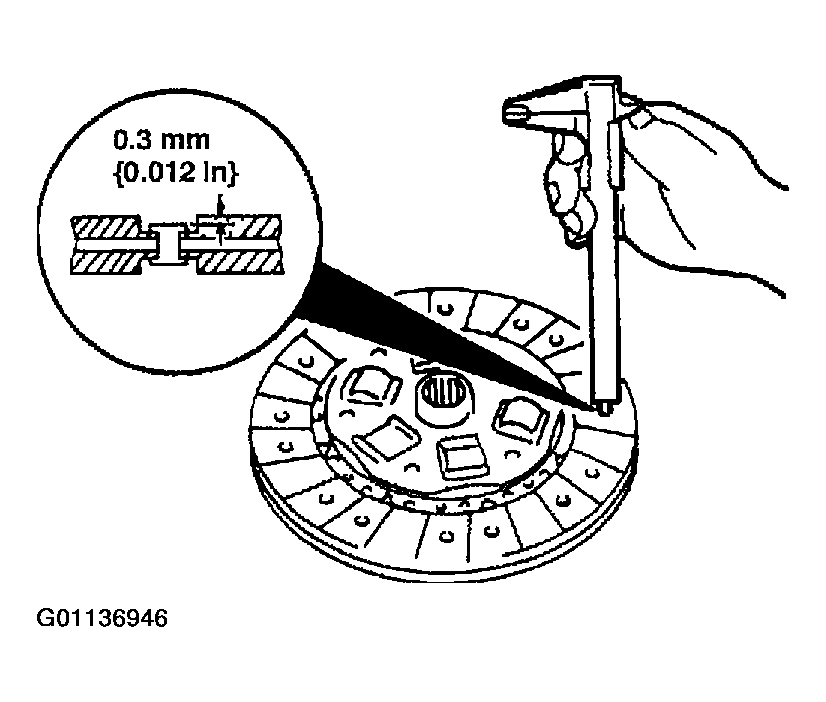

Fig 1: Measuring Thickness Of The Lining At Rivet Head
Courtesy of MAZDA MOTORS CORP.
Measure the clutch disc runout using a dial indicator.
- Replace the clutch disc if runout is excessive.

Runout

0.7 mm {0.0276 in} max.

Fig 2: Measuring Clutch Disc Runout

Courtesy of MAZDA MOTORS CORP.
