Transaxle Removal Note
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

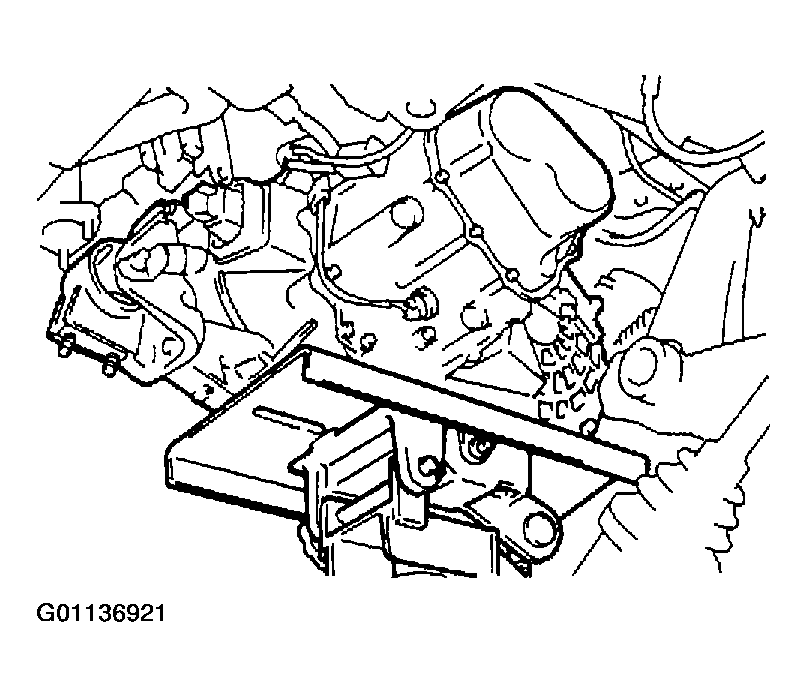

- Loosen the SST
(49 E017 5A0) and lean the engine toward the transaxle.
- Support the transaxle on a jack.
Courtesy of MAZDA MOTORS CORP.
- Remove the transaxle mounting bolts.
- Remove the transaxle.
