Engine Mount Member Installation Note

1. Position the direction indicator on engine mount member bushings facing toward the front side, and install the bushings onto the engine mount member.

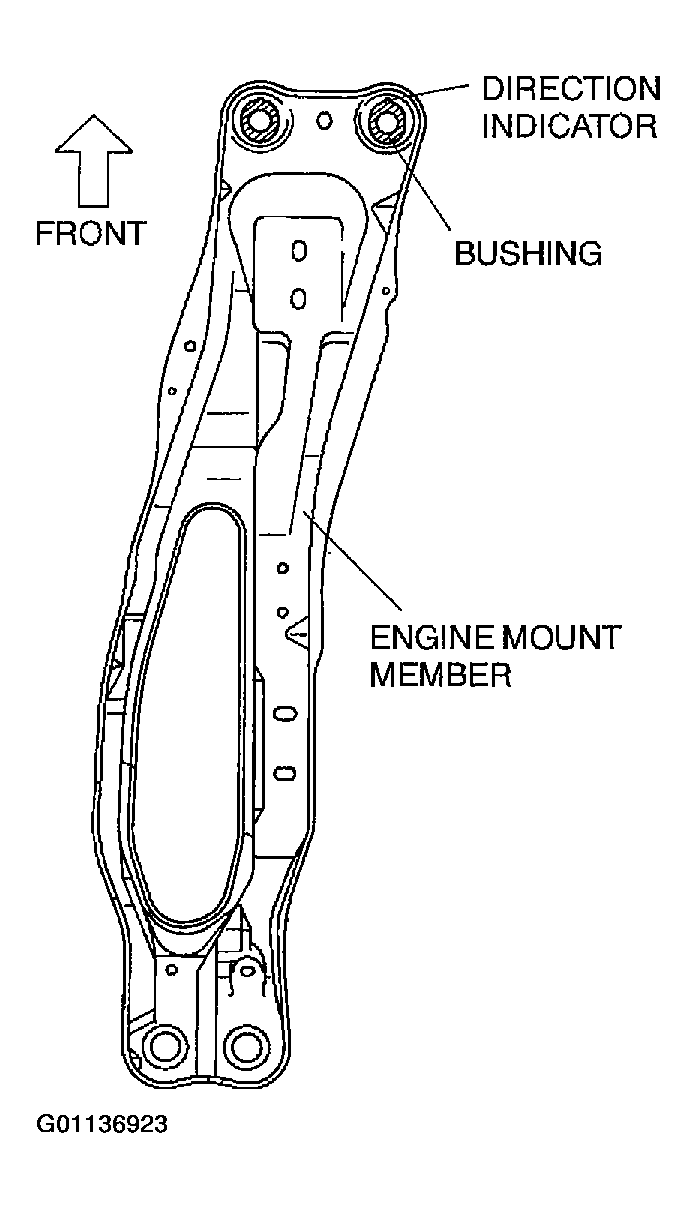

   Fig 1: Installing Engine Mount Member

   Courtesy of MAZDA MOTORS CORP.
2. To install the engine mount member, put the No.2 engine mount stud bolts through the engine mount member installation holes.
3. Install the engine mount member bolts A and nuts A.

   Tightening Torque

   A: 67-93 N.m {6.8-9.5 kgf.m, 50-68 ft.lbf}

4. Loosely tighten the No.2 engine mount nuts B.
5. Remove the SST  (49 E017 5A0).
6. Tighten the No.2 engine mount nuts B.

Tightening Torque

B: 75-104 N.m {7.6-10.7 kgf.m, 55-77 ft.lbf}

Fig 2: Installing Engine Mount

Courtesy of MAZDA MOTORS CORP.
