Resistance Inspection (On-Vehicle)
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Connect the SST (104 pin Breakout Box) to the PCM harness with PCM disconnected.

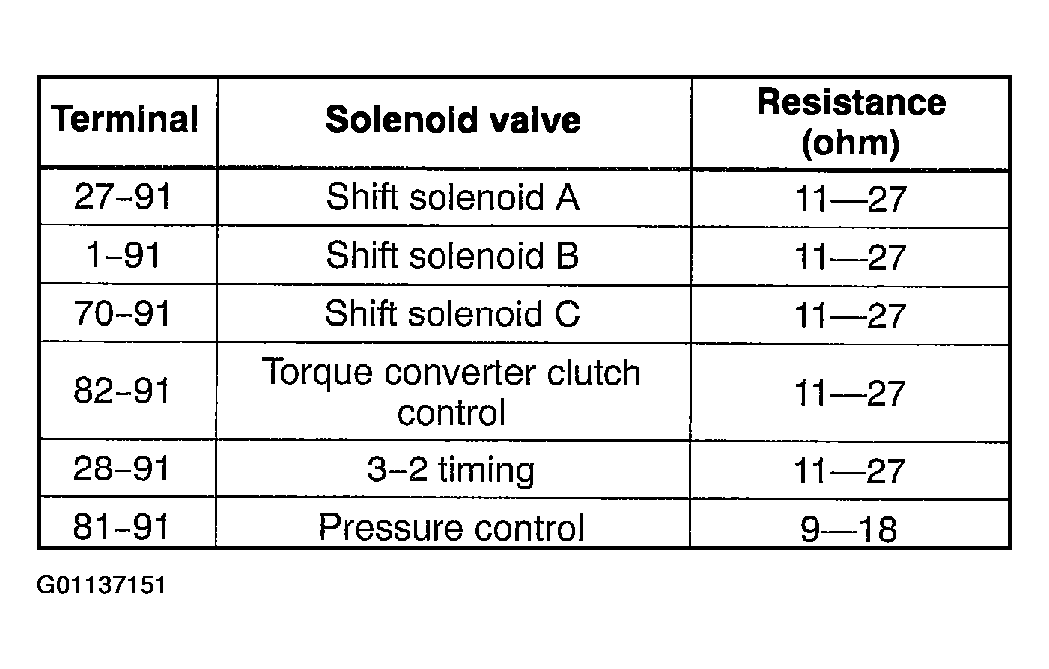

- Measure the resistance between the following terminals of the SST
.
- If not as specified, inspect the ground, then perform resistance inspection (OFF-vehicle)
ATF Temperature: -40-160 °C {-40-320 °F}
- If not as specified, inspect the ground, then perform resistance inspection (OFF-vehicle)
- Connect the negative battery cable.
