Solenoid Valve Removal/Installation
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the control valve body. See CONTROL VALVE BODY REMOVAL/INSTALLATION .

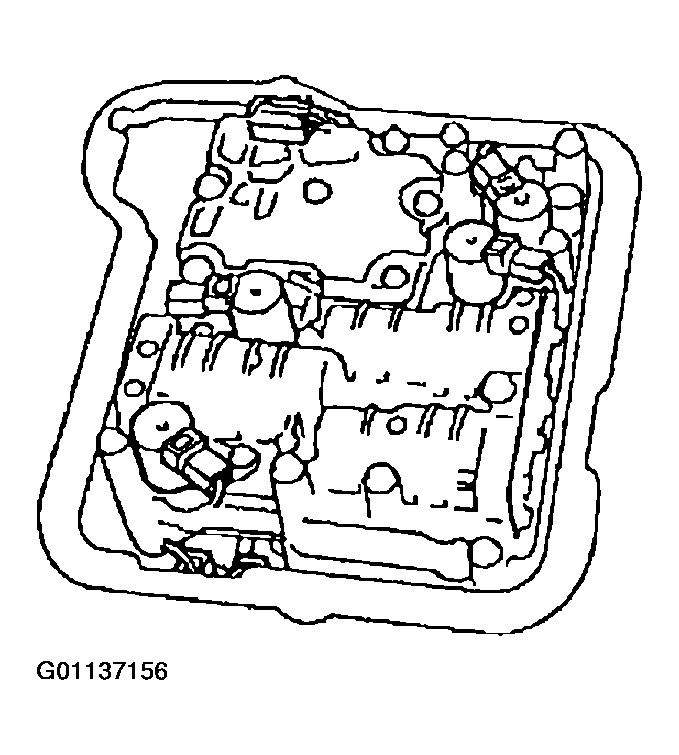

- Remove the solenoid valve(s).
- Apply ATF to a new O-ring and install it on the solenoid valve.
- Install the solenoid valve in the control valve body.
Tightening Torque
6.5-7.8 N.m {66-80 kgf.cm, 58-69 in.lbf}
- Install the control valve body. See CONTROL VALVE BODY REMOVAL/INSTALLATION .
- Carry out the time lag test and line pressure test. See MECHANICAL SYSTEM TEST .
- Carry out the road test. See ROAD TEST .
