Shift Point

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

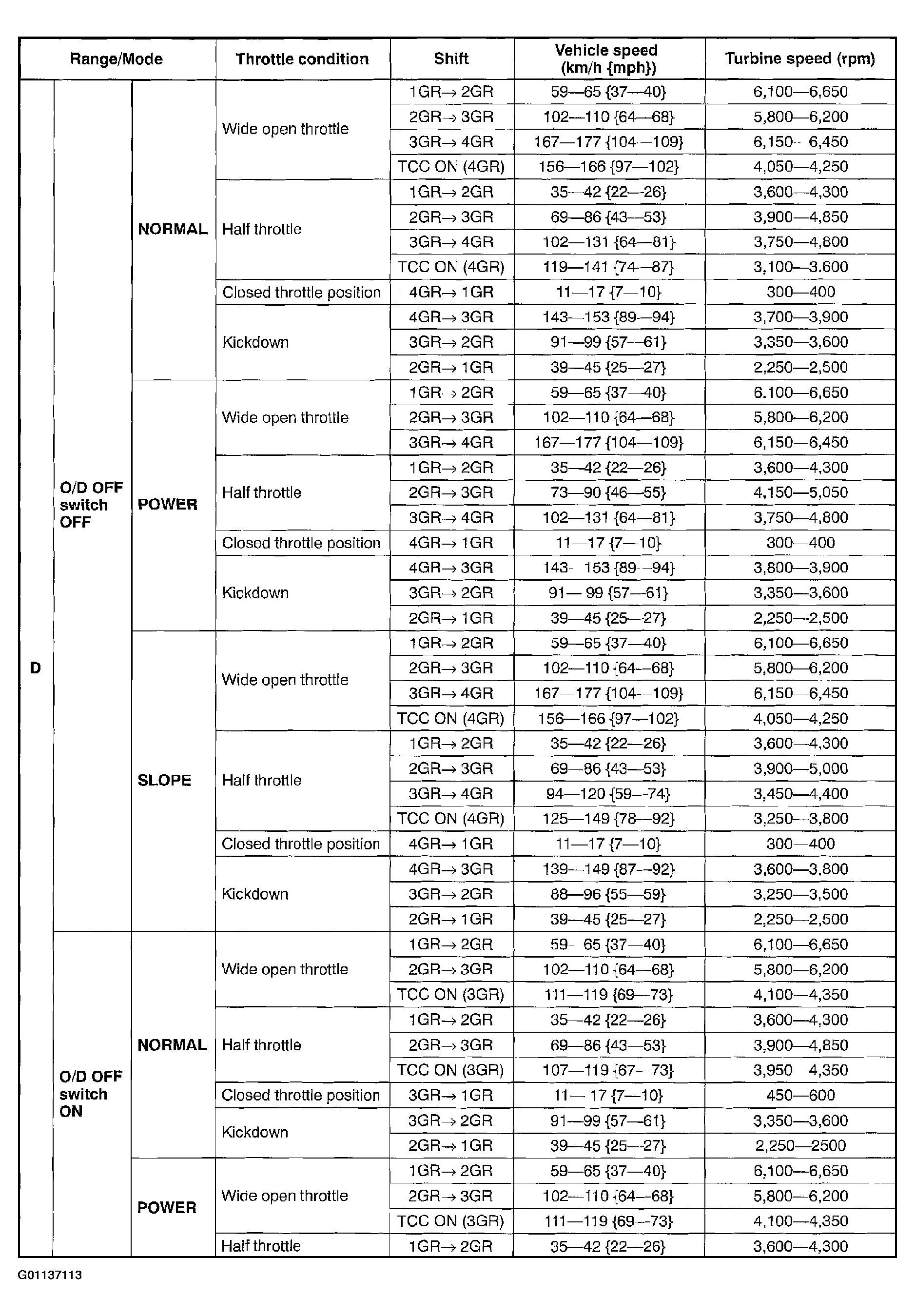

Fig 1: Shift Point - Range Position D (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

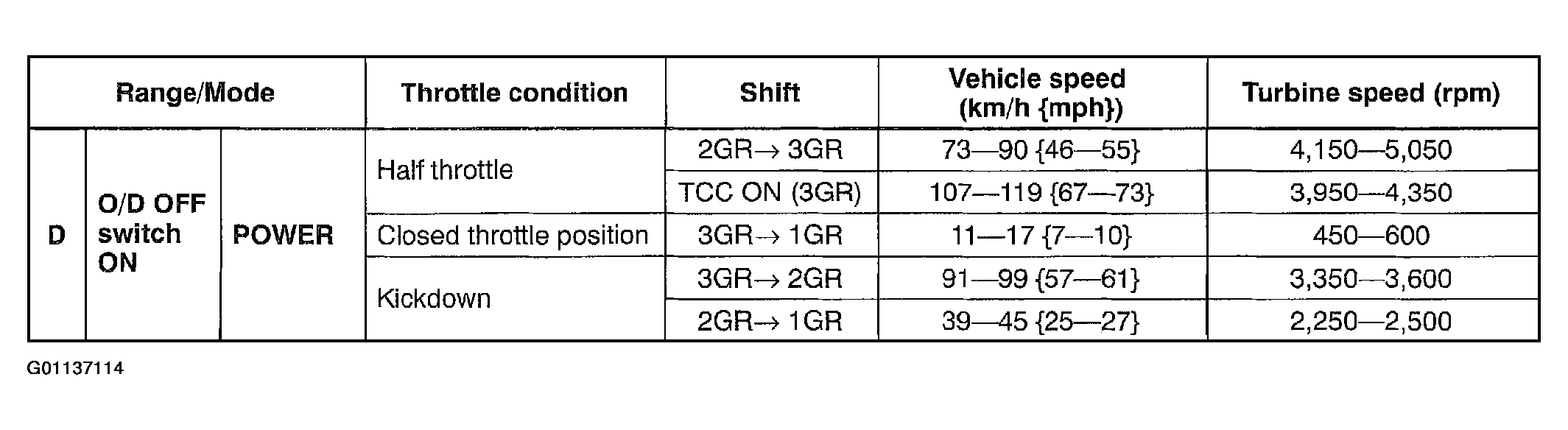

Fig 2: Shift Point - Range D ((2 Of 2)

Courtesy of MAZDA MOTORS CORP.
