Power Flow: Structure

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

The powertrain system consists of four pairs of clutches, brake, brake band, two pairs of one-way clutches, and Ravigneaux Type planetary gears.

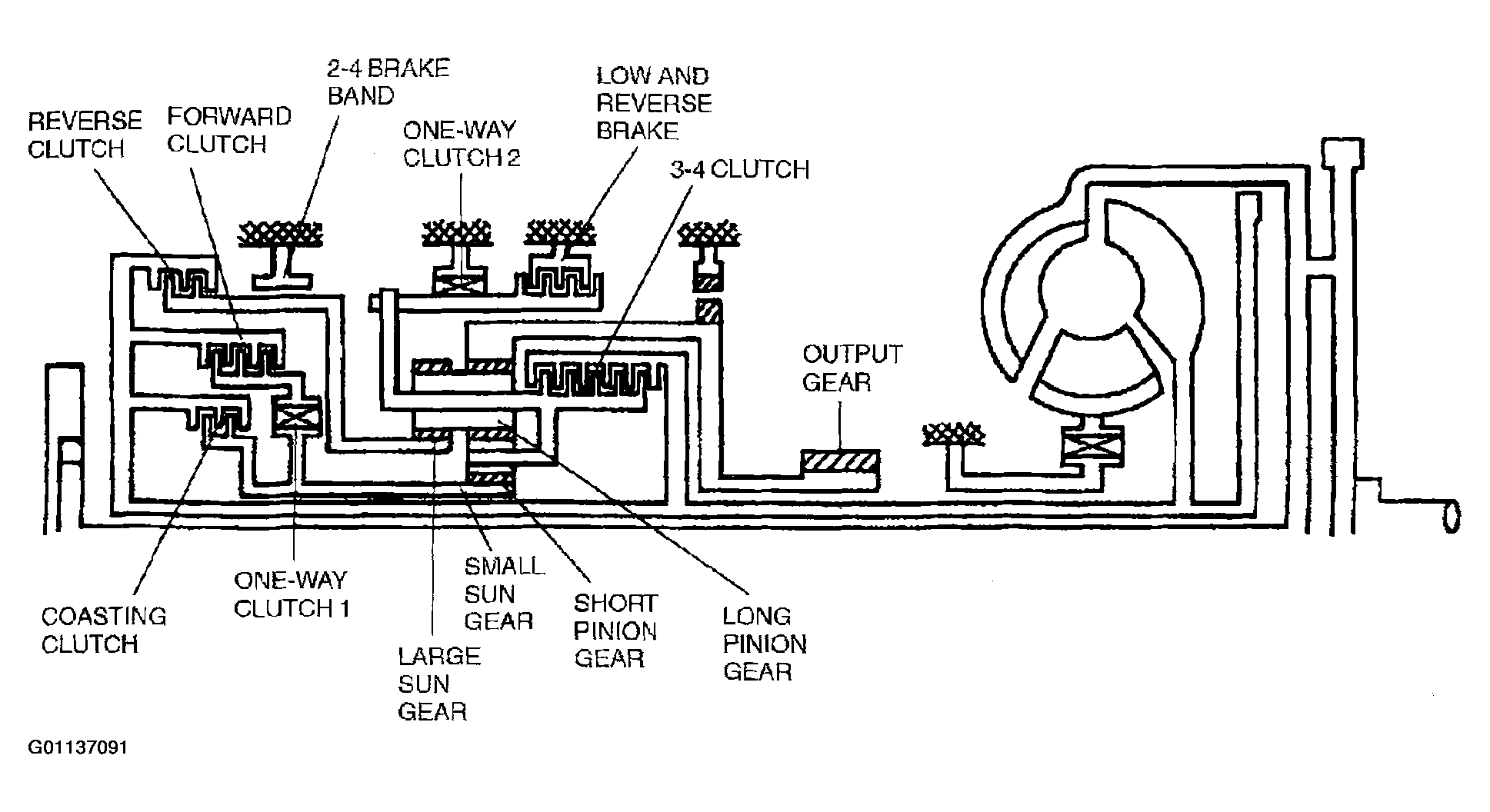

Fig 1: Automatic Transaxle Power Flow (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

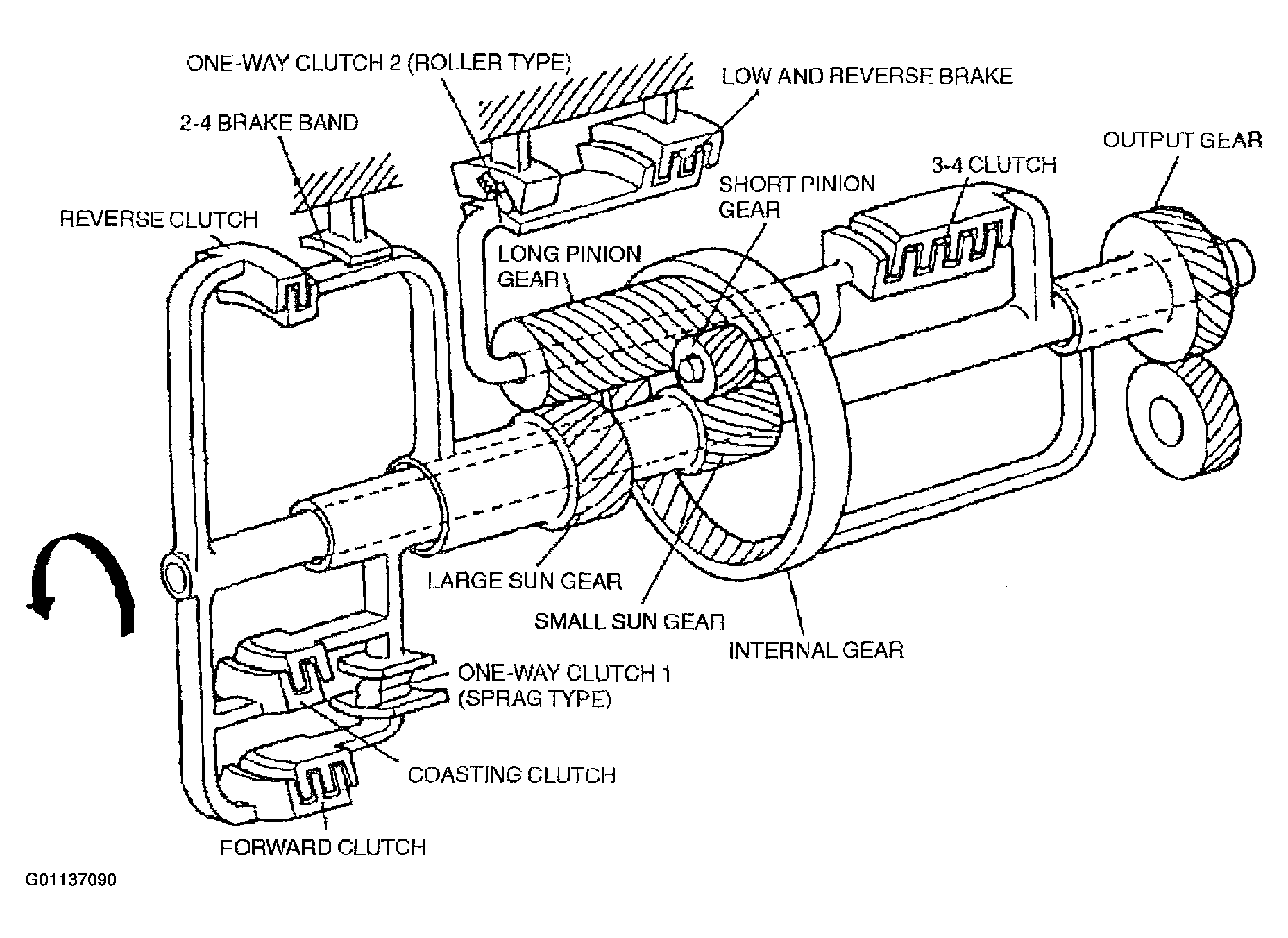

Fig 2: Automatic Transaxle Power Flow (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
