Component Description

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

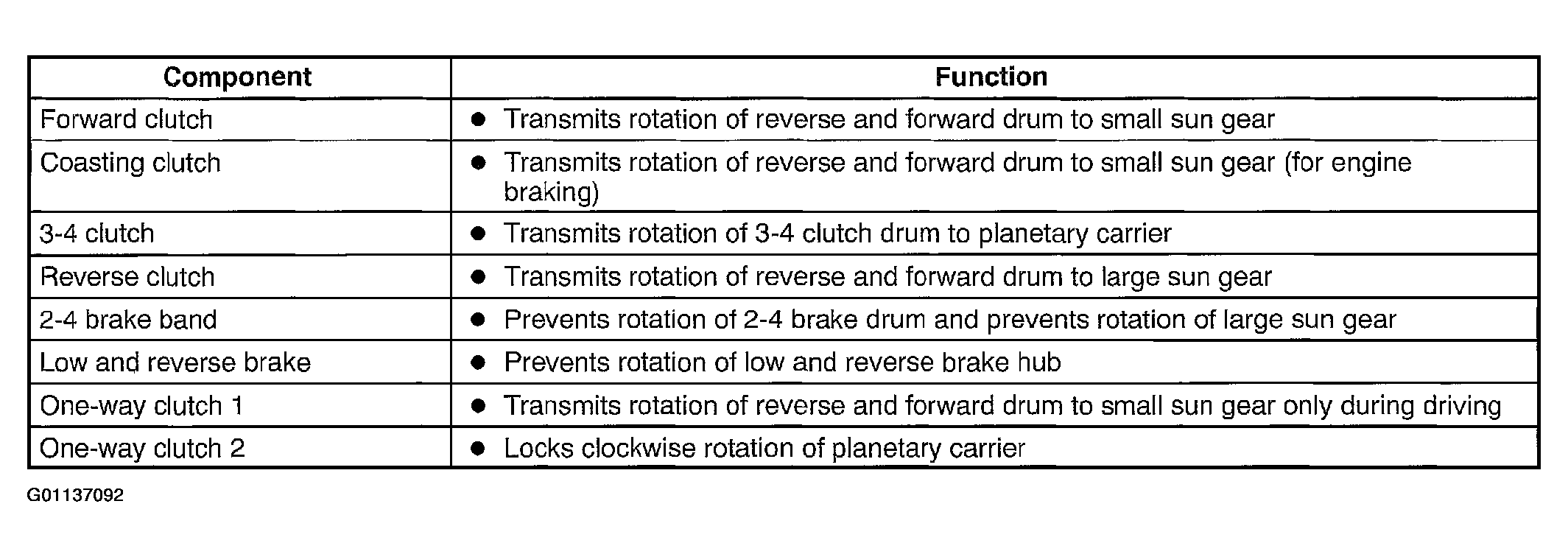

Fig 1: Component Descriptions & Functions

Courtesy of MAZDA MOTORS CORP.

NOTE:

All rotations are viewed from the oil pump.
