Inspection Of Continuity

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the instrument cluster connector.
Inspect continuity between terminal 3C and powertrain control module terminal 79.
- If not as specified, inspect the wiring harness (instrument cluster-powertrain control module).
- If it is as specified, go to the next step.

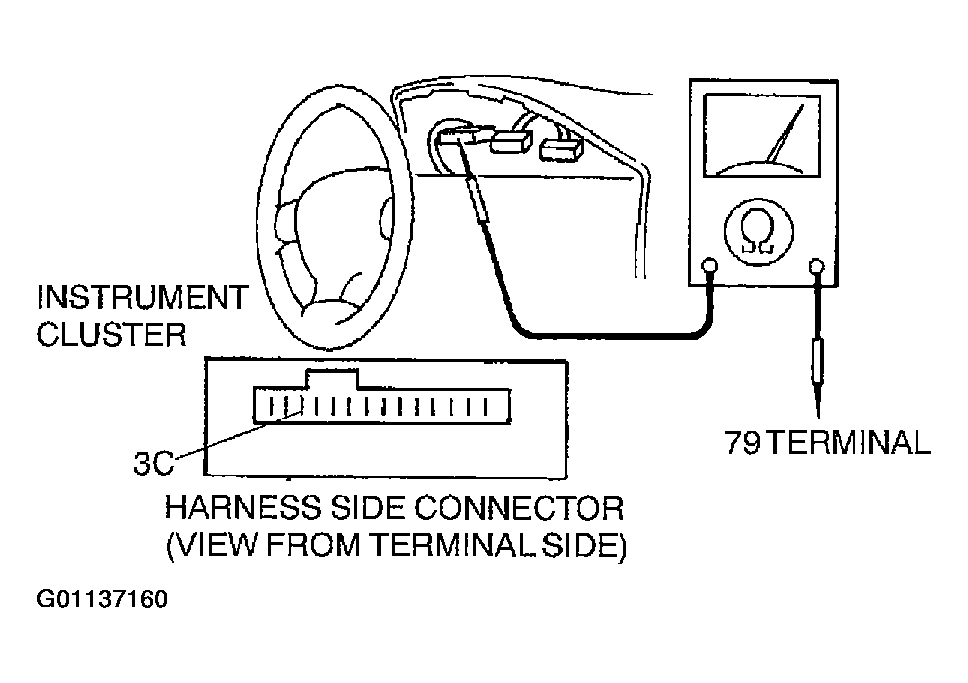

  Fig 1: Harness Continuity Specifications Between Instrument Cluster Harness Connector Terminal C3 & PCM Harness Connector Terminal 79
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Checking Instrument Cluster Harness Continuity & Connector View
  Courtesy of MAZDA MOTORS CORP.
Inspect continuity between terminals 3N and 3C.
- If not as specified, replace the instrument cluster or bulb.

  Fig 3: Instrument Cluster Continuity Specifications Between Terminals 3N & 3C
  Courtesy of MAZDA MOTORS CORP.

  Fig 4: Checking Instrument Cluster Continuity
  Courtesy of MAZDA MOTORS CORP.
Install the instrument cluster.
Connect the negative battery cable.
