EC-At Operation Chart

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

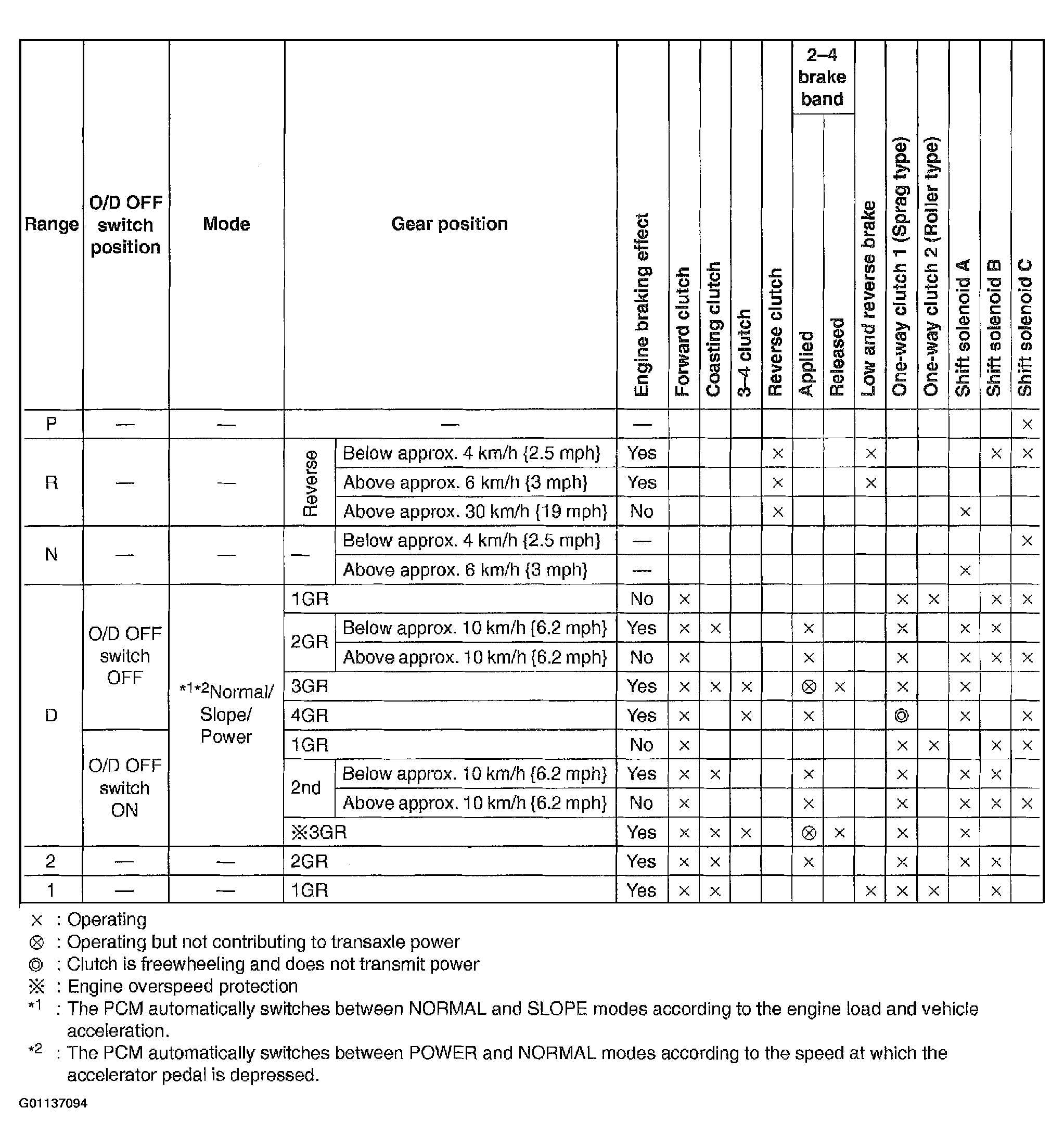

Fig 1: EC-AT Operation Chart
G01137094Courtesy of MAZDA MOTORS CORP.
