Drive Plate Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.

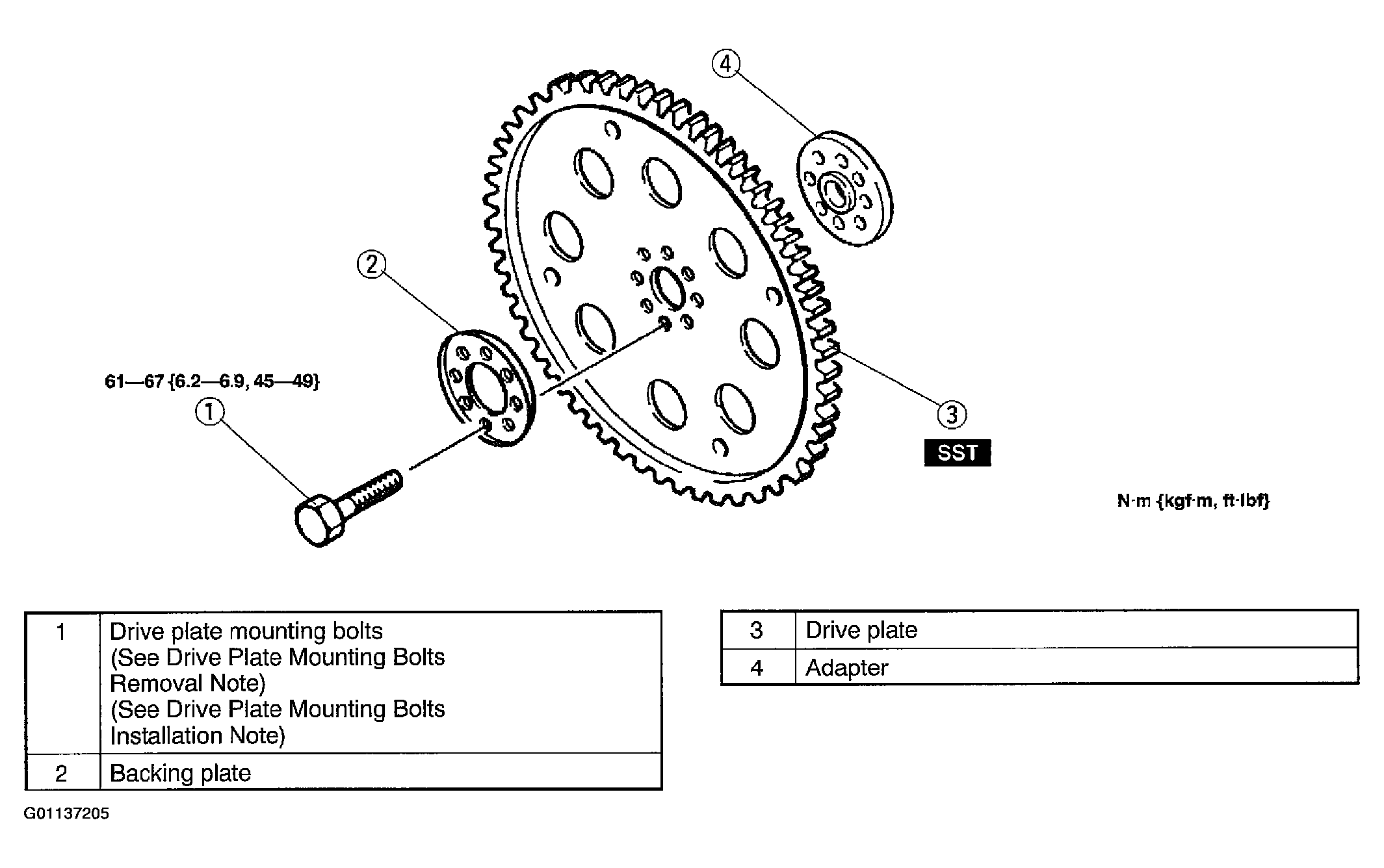

    Fig 1: Removing Drive Plate
    G01137205Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
