Drive Plate Mounting Bolts Installation Note
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

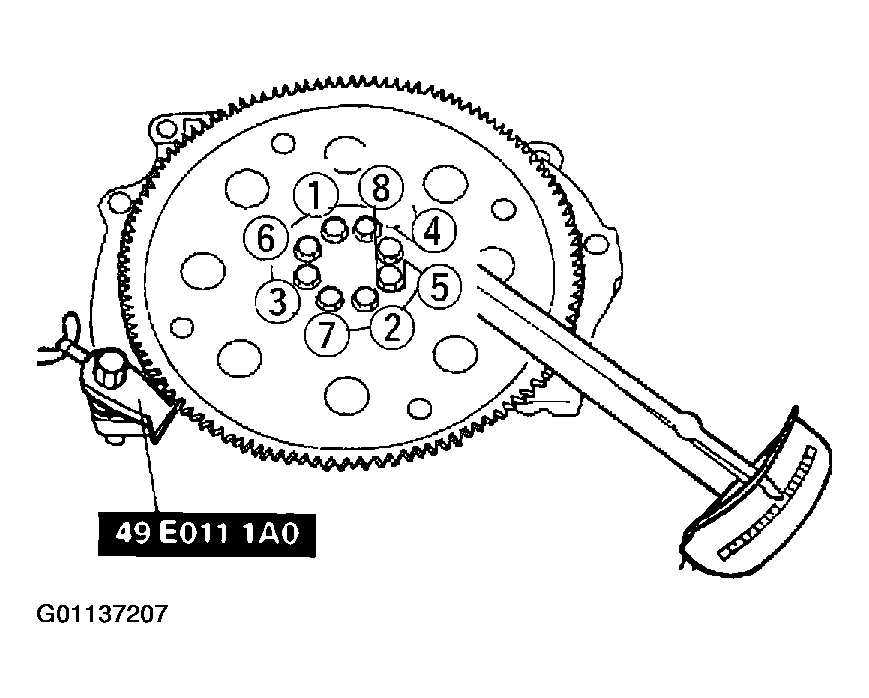

- Set the SST
or equivalent against the drive plate.
- Tighten the drive plate mounting bolts in two or three steps in the order shown.
Tightening Torque
61-67 N.m {6.2-6.9 kgf.m, 45-49 ft.lbf}
Courtesy of MAZDA MOTORS CORP.
