Lower Arm Removal Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clinch bolt from the lower arm ball joint.

Fig 1: Removing Clinch Bolt
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Wrap a rag around the ball joint dust boot to protect it from damage.
Pry the lower arm out of the knuckle.

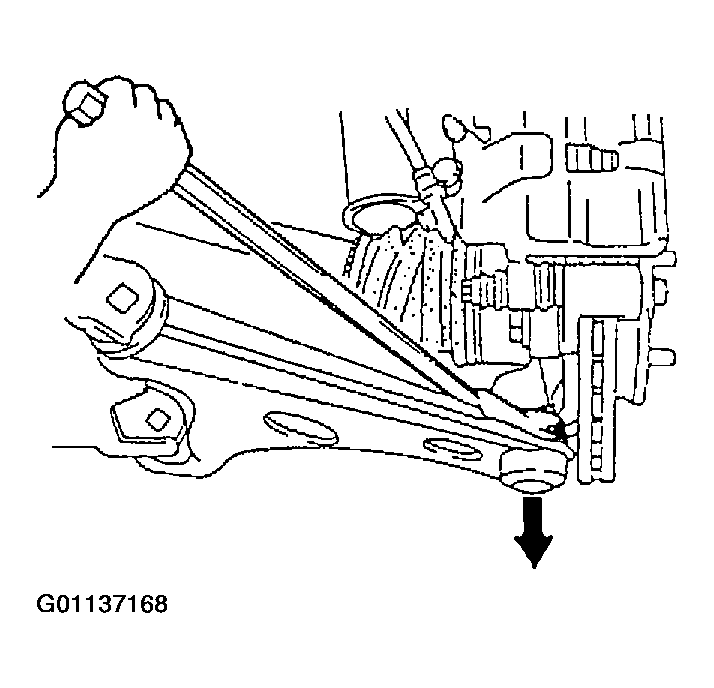

Fig 2: Prying Lower Arm Out Of Knuckle
Courtesy of MAZDA MOTORS CORP.
