Lower Arm Installation Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Connect the lower arm to the knuckle and tighten the clinch bolt.
Tightening Torque

44-58 N.m {4.4-6.0 kgf.m, 32-43 ft.lbf}

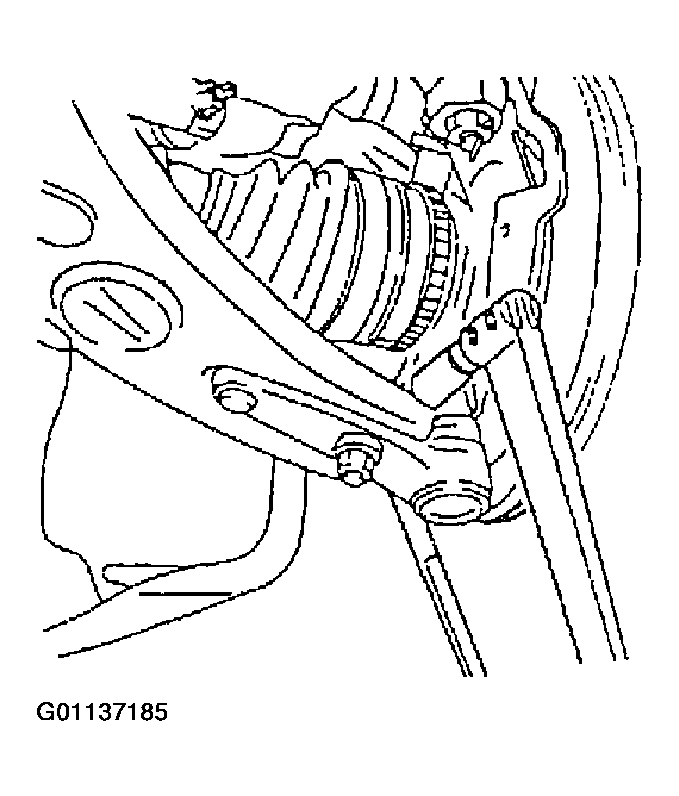

Fig 1: Tightening Lower Arm-To-The Knuckle Clinch Bolt
Courtesy of MAZDA MOTORS CORP.
Install the ABS wheel-speed sensor harness mounting nuts.
Tightening Torque

7.9-10.7 N.m {80-110 kgf.cm, 69.5-95.4 in.lbf}

Fig 2: Installing ABS Wheel-Speed Sensor Harness Mounting Nuts
Courtesy of MAZDA MOTORS CORP.
Install the clip.
