Joint Shaft Installation Note
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

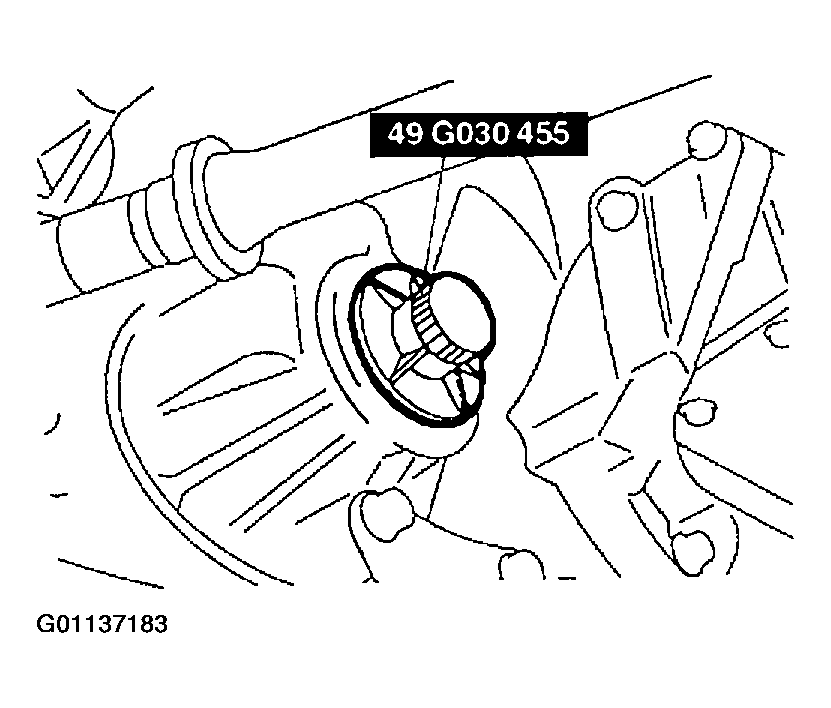

- Remove the SST from the transaxle case.
- Verify that there is no damage to the oil seal.
- Hand tighten bolts A.
- Tighten the bolts A, B to the specified torque.
Tightening Torque
43-61 N.m {4.3-6.3 kgf.m, 32-45 ft.lbf}
