Engine Mount Member Removal Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

To prevent damage to the body, insert a rag into the gap between the fender and body, when installing the SST.

Support the engine using the SST before removing the engine mounting member.

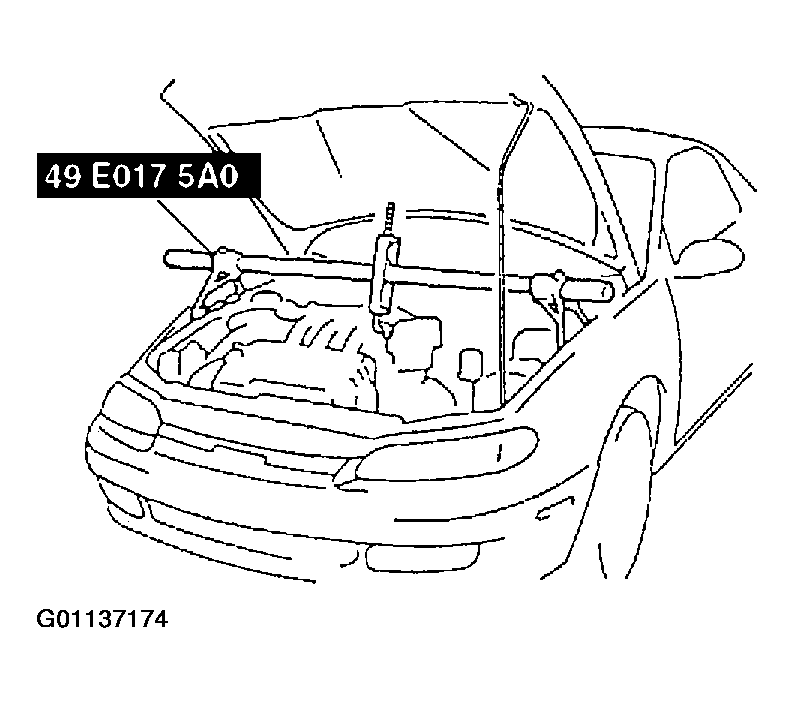

Fig 1: Installing SST Engine Support
Courtesy of MAZDA MOTORS CORP.
Remove the engine mounting member.
