Vehicle Speedometer Sensor Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the battery component.
  3. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [FS] .)
  4. Disconnect the vehicle speedometer sensor connector.
  5. Remove the vehicle speedometer sensor.

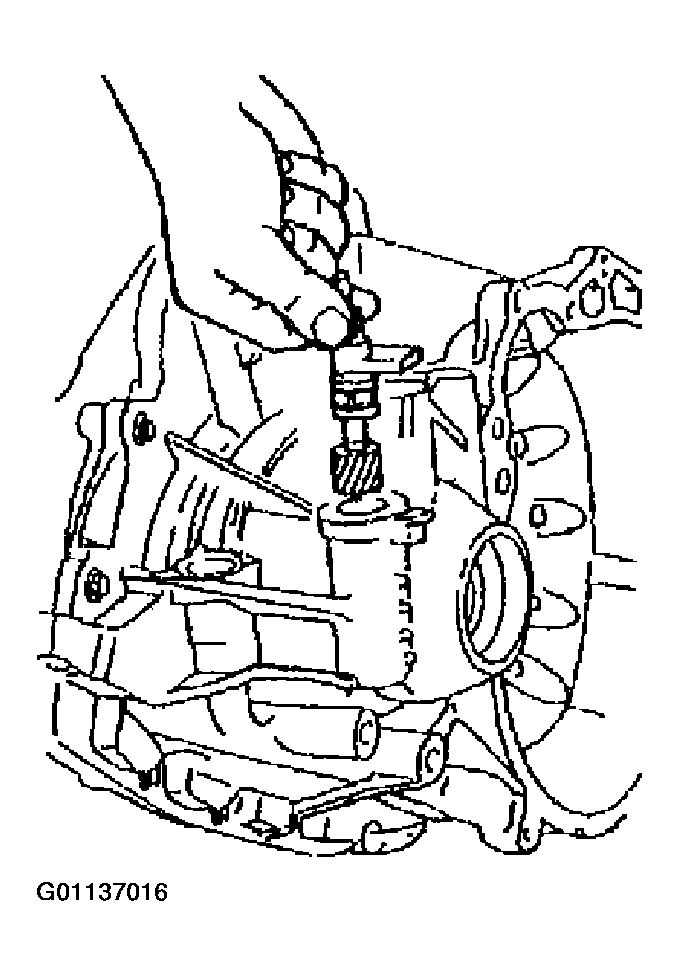

    Fig 1: Removing/Installing Vehicle Speedometer Sensor
    G01137016Courtesy of MAZDA MOTORS CORP.
  6. Apply ATF to a new O-ring and install it on a new vehicle speedometer sensor.
  7. Install the vehicle speedometer sensor.

    Tightening Torque

    5.0-6.0 N.m {50-61 kgf.cm, 44-53 in.lbf}

  8. Connect the vehicle speedometer sensor connector.
  9. Install the battery component.
  10. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [FS] .)
  11. Connect the negative battery cable.
