Transaxle Range Switch Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the battery component.
  3. Remove the fresh-air duct, air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [FS] .)
  4. Disconnect the transaxle range switch connector.
  5. Remove the transaxle range switch.
    Fig 1: Removing/Installing Transaxle Range Switch
    G01137014Courtesy of MAZDA MOTORS CORP.
  6. Shift the transaxle into N position.
  7. Install the transaxle range switch on the manual lever shaft.
  8. Hand tighten the two mounting bolts.
  9. Use the SST  to align the switch on the shaft and case.
  10. Tighten the two mounting bolts.

    Tightening Torque

    11-13 N.m {112-133 kgf.cm, 97-115 in.lbf}

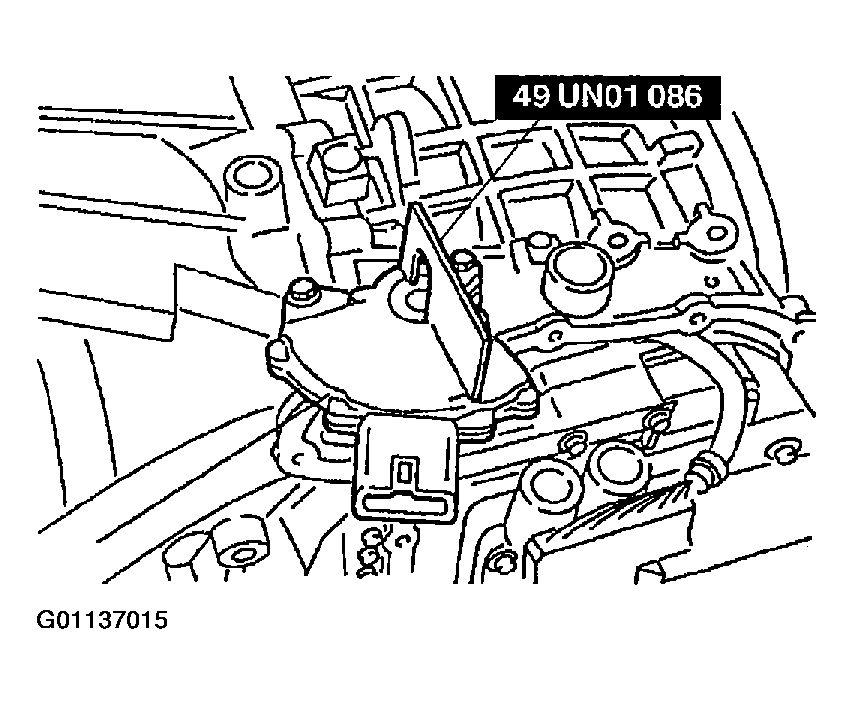

    Fig 2: Installing/Tightening Transaxle Range Switch
    G01137015Courtesy of MAZDA MOTORS CORP.
  11. Connect the transaxle range switch connector.
  12. Install the fresh-air duct, air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [FS] .)
  13. Install the battery component.
  14. Connect the negative battery cable.
