Power Flow

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Component descriptions.

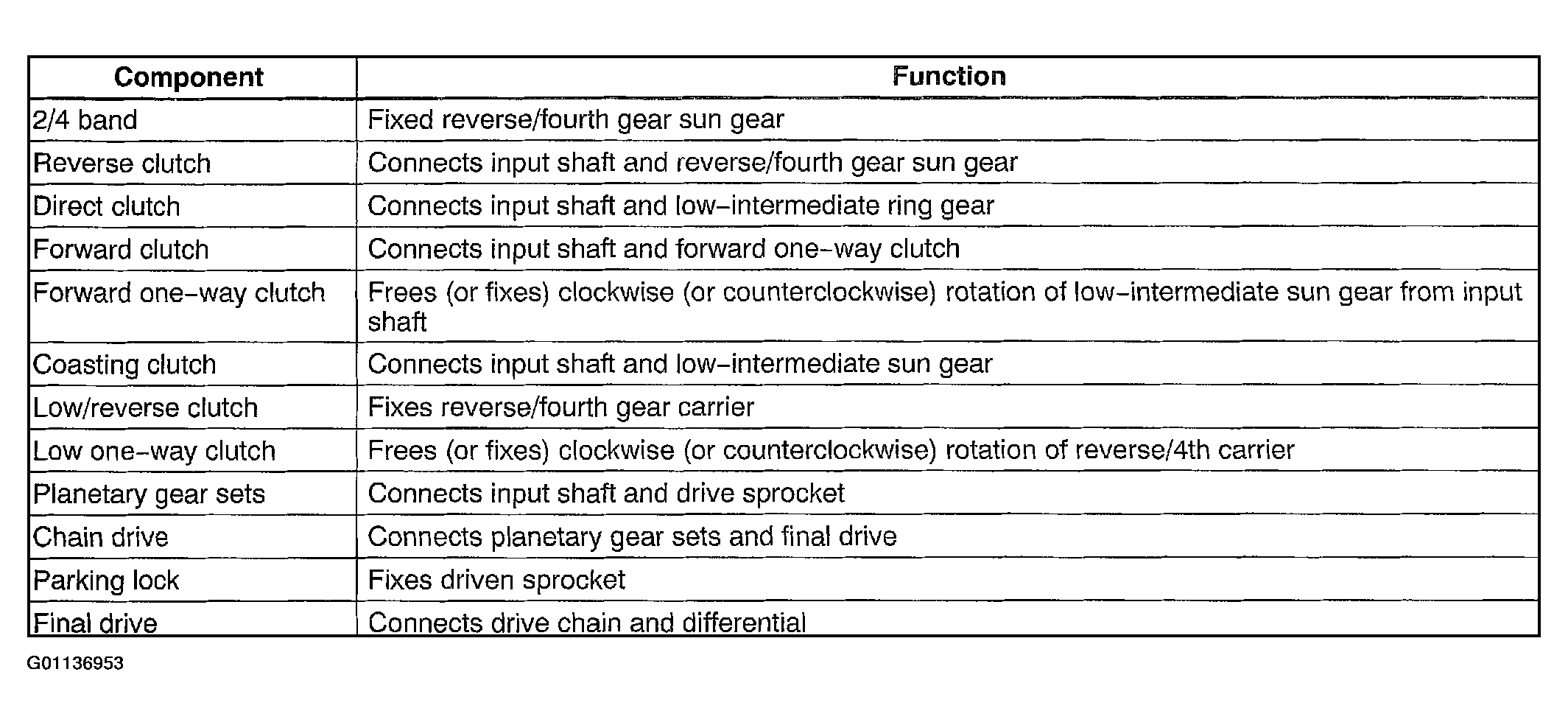

Fig 1: Component Descriptions

Courtesy of MAZDA MOTORS CORP.

NOTE:

All directions of rotation are viewed from the oil pump

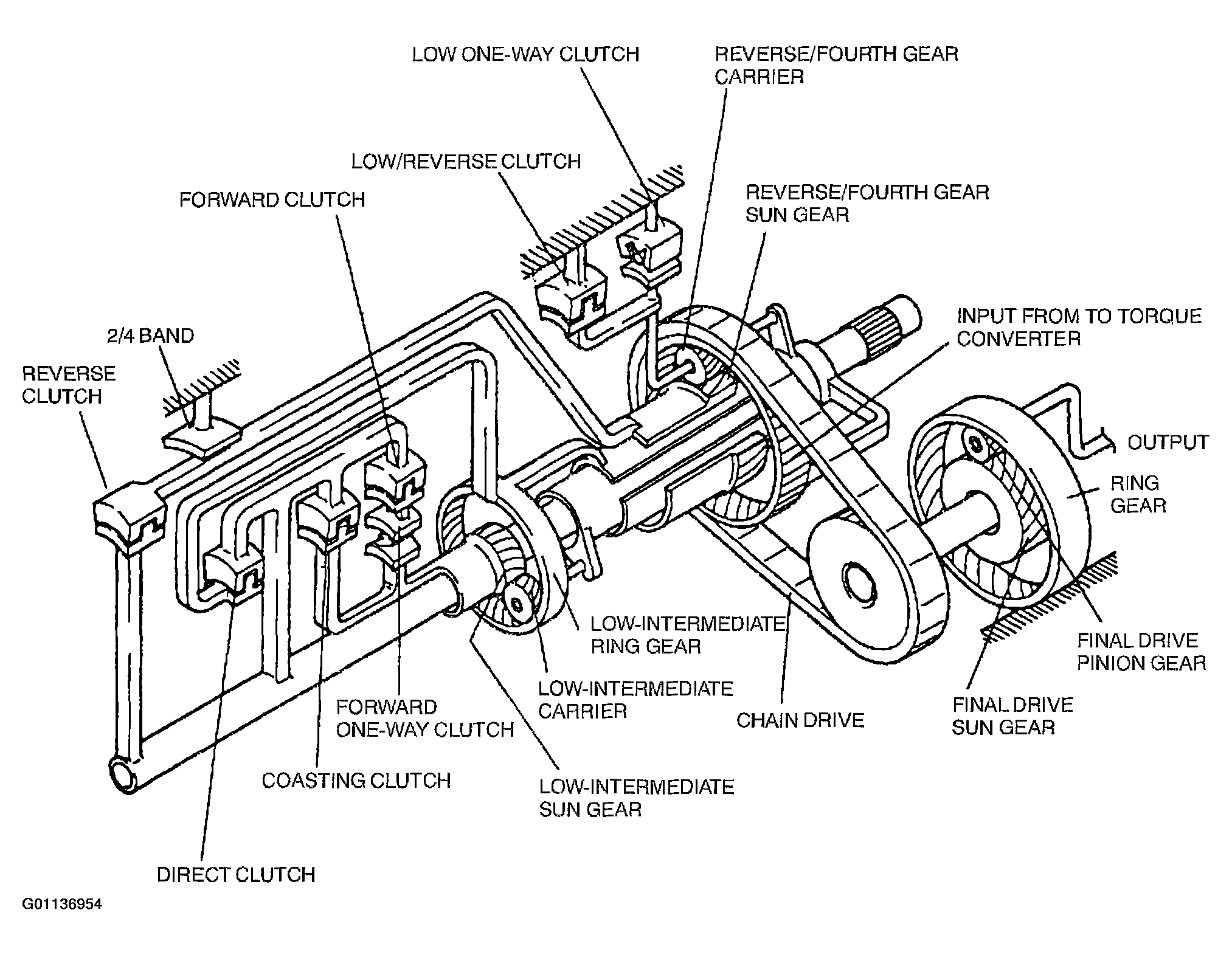

Fig 2: Transaxle Power Flow
Courtesy of MAZDA MOTORS CORP.
