Oil Seals Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Remove the drive shaft and joint shaft. See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .
Remove and discard the differential seals using the SSTs or equivalent.

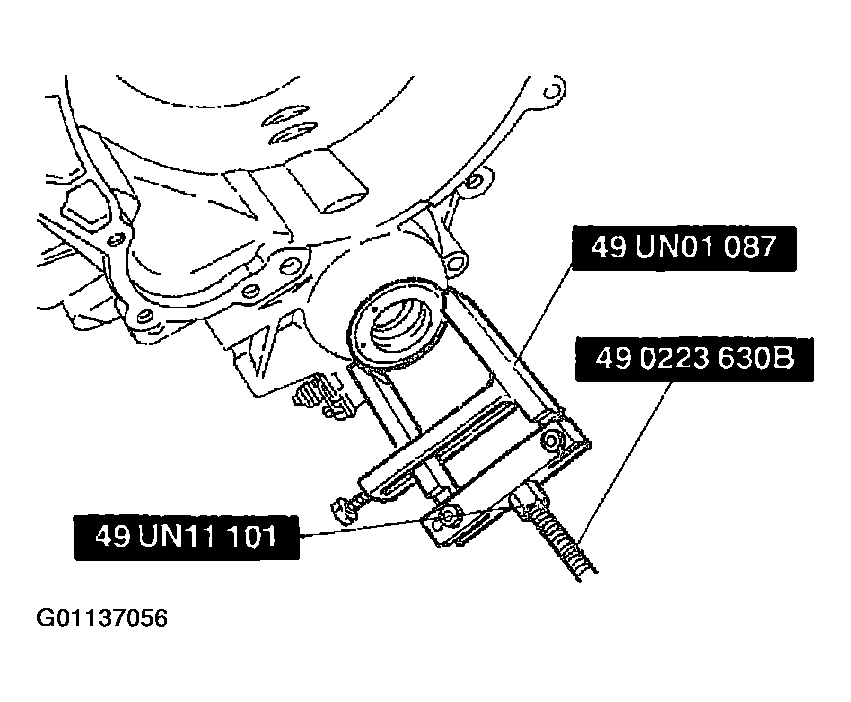

Fig 1: Removing/Installing Differential Seals
Courtesy of MAZDA MOTORS CORP.
Apply a thin coat of petroleum jelly on the outside and the lip of the new differential seals.
Use the SST to tap in new differential seals.

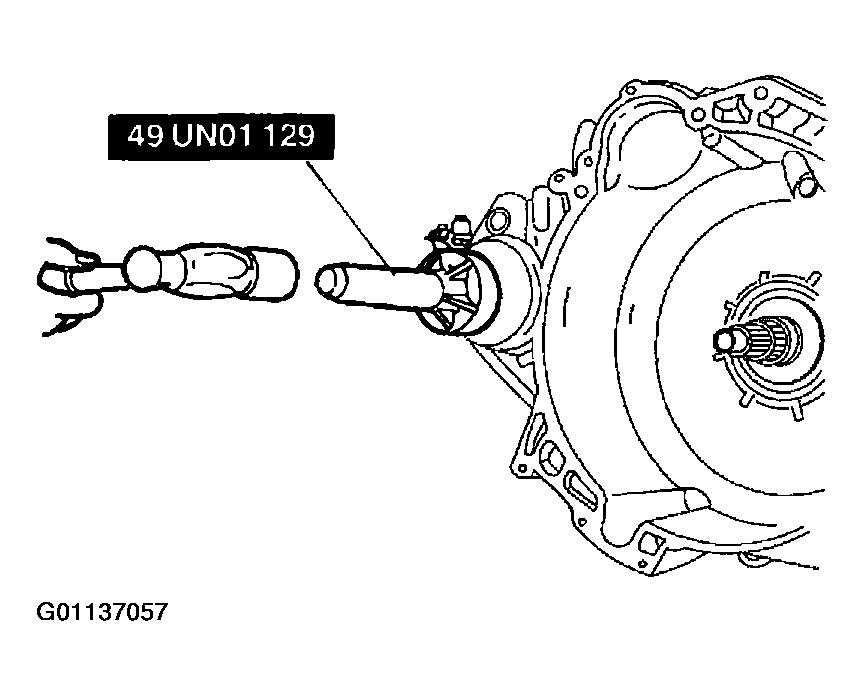

Fig 2: Tapping In New Differential Seals
Courtesy of MAZDA MOTORS CORP.
Install the drive shaft and joint shaft. See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .
