Oil Cooler Installation Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

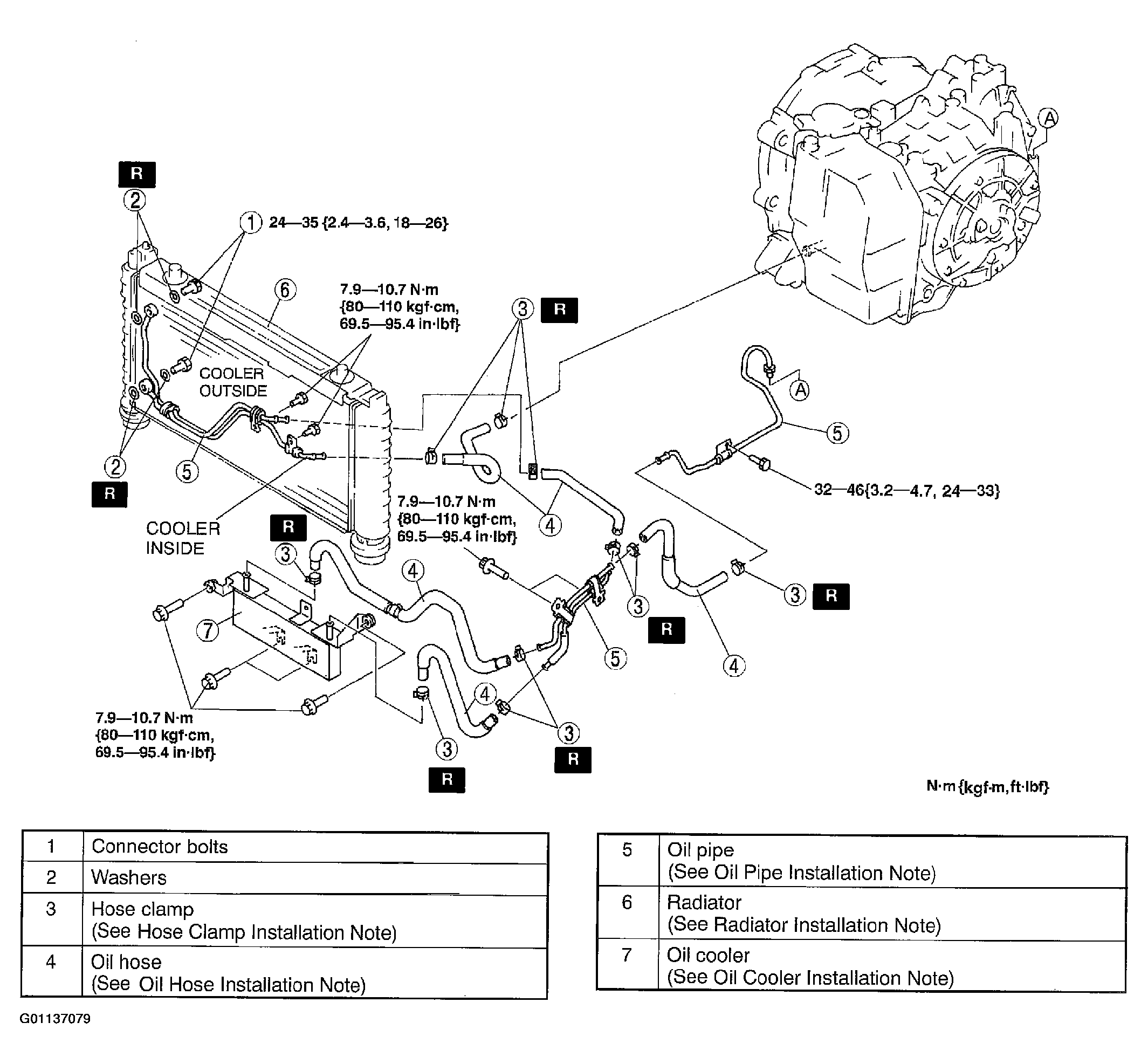

Fig 1: Exploded View Oil Cooler

Courtesy of MAZDA MOTORS CORP.

Inspect for cracks, damage, and ATF leakage.

Fig 2: Inspecting Oil Cooler
Courtesy of MAZDA MOTORS CORP.
Inspect for bent fins.
