Section 251 (Automatic Transaxle - Service, Removal & Installation [La4A-El])
>>
Electronic Control System
>>
Turbine Shaft Speed (TSS) Sensor Description
>>
Description
Turbine Shaft Speed (TSS) Sensor Description: Description
WARNING:
This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
A TSS is a magnetic pickup that sends a signal to the PCM that indicates transaxle turbine shaft input speed.

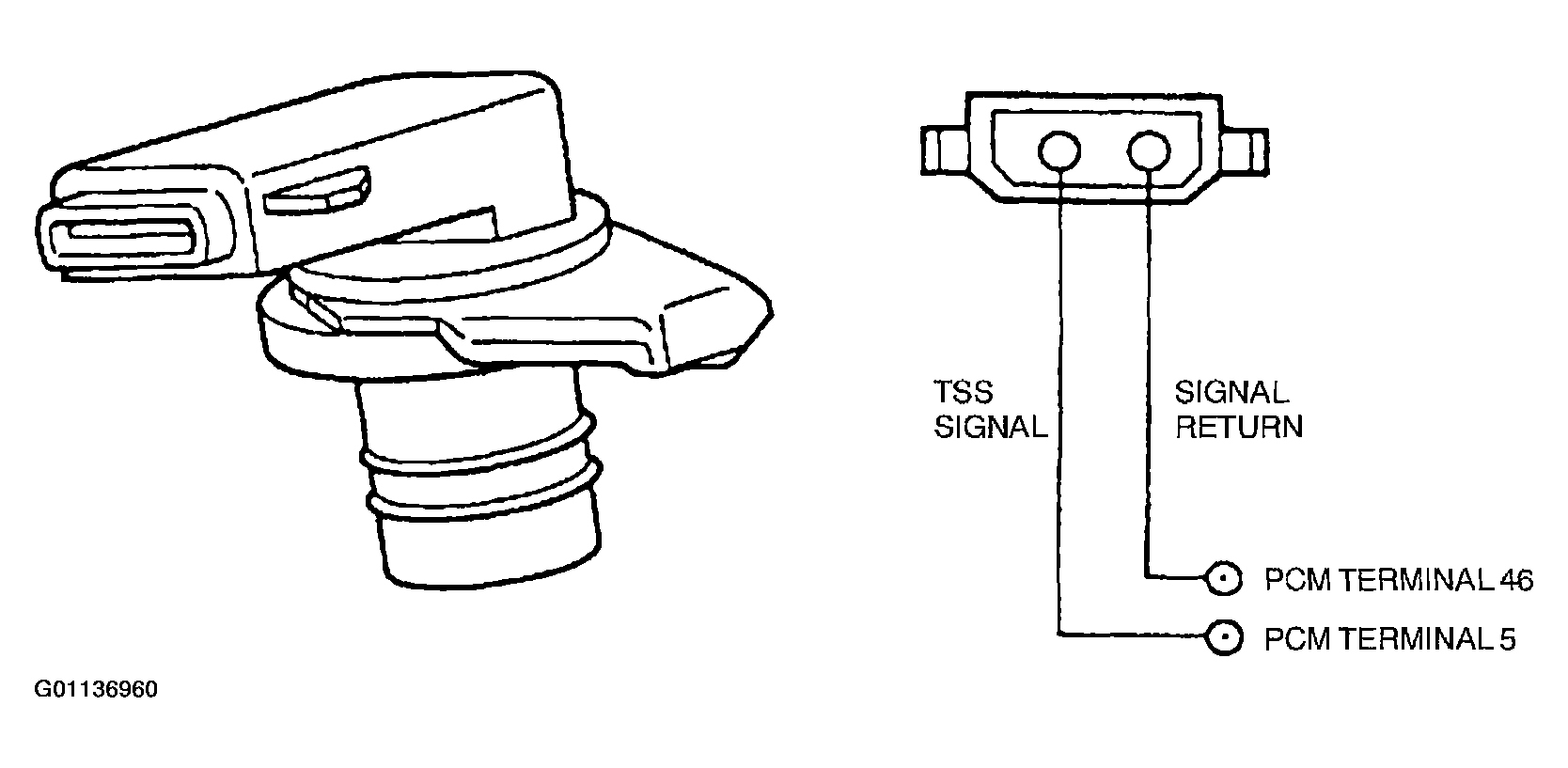

Fig 1: Identifying Turbine Shaft Speed Sensor & Connector View
Courtesy of MAZDA MOTORS CORP.
