Transaxle Fluid Temperature (TFT) Sensor Description: Description

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

The TFT sensor is located on the transaxle solenoid body. It is a temperature-sensitive device called a thermistor. The resistance value of the TFT sensor will vary with temperature change.
The PCM monitors the voltage across the TFT sensor to determine the temperature of the ATF.

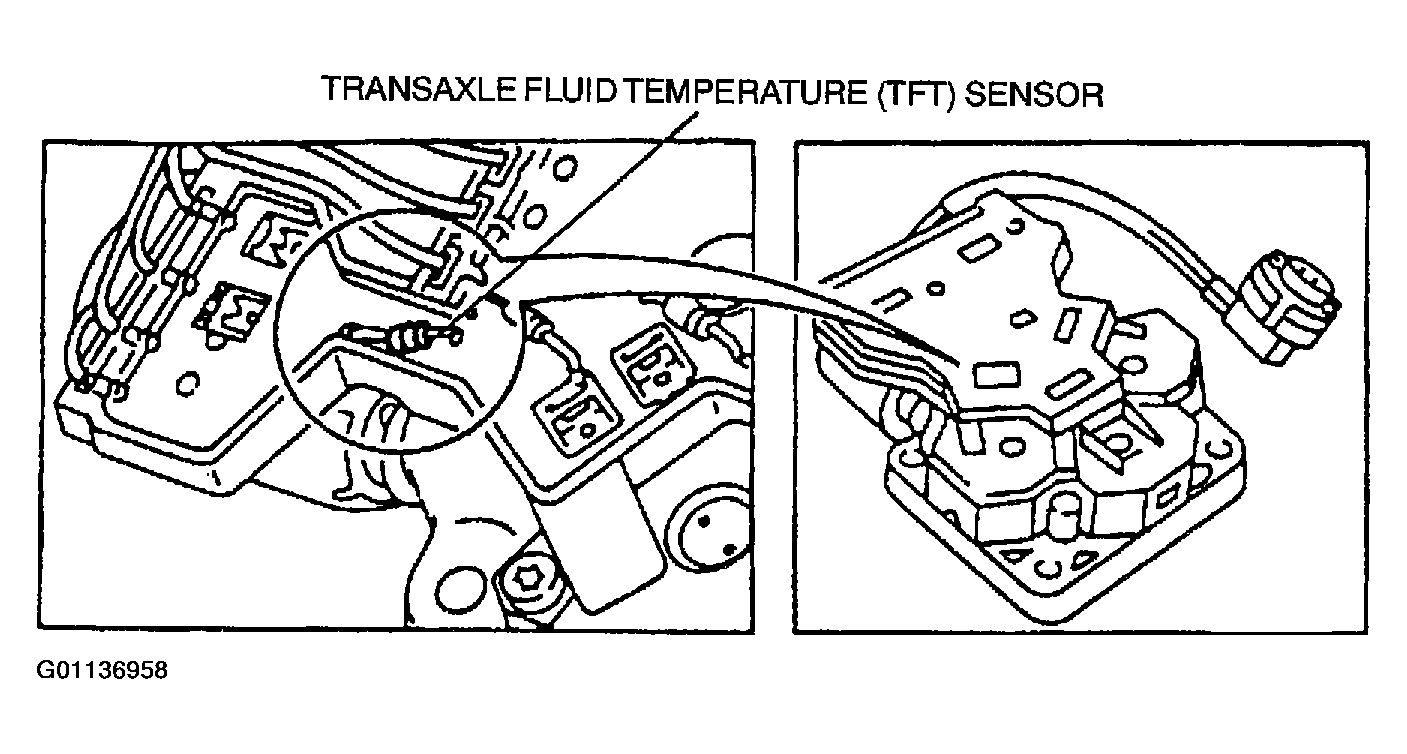

Fig 1: Identifying Transaxle Fluid Temperature Sensor

Courtesy of MAZDA MOTORS CORP.
