Solenoid Valve Operation Chart

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

The following solenoid operation chart shows normal solenoid operation for given operation mode.

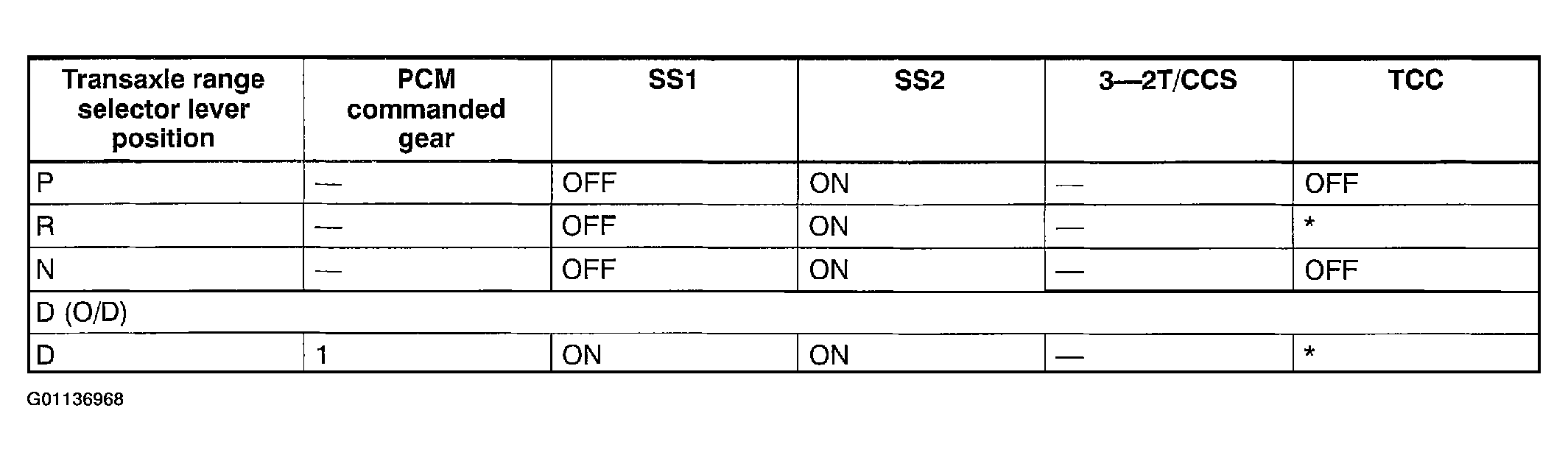

Fig 1: Solenoid Valve Operation Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

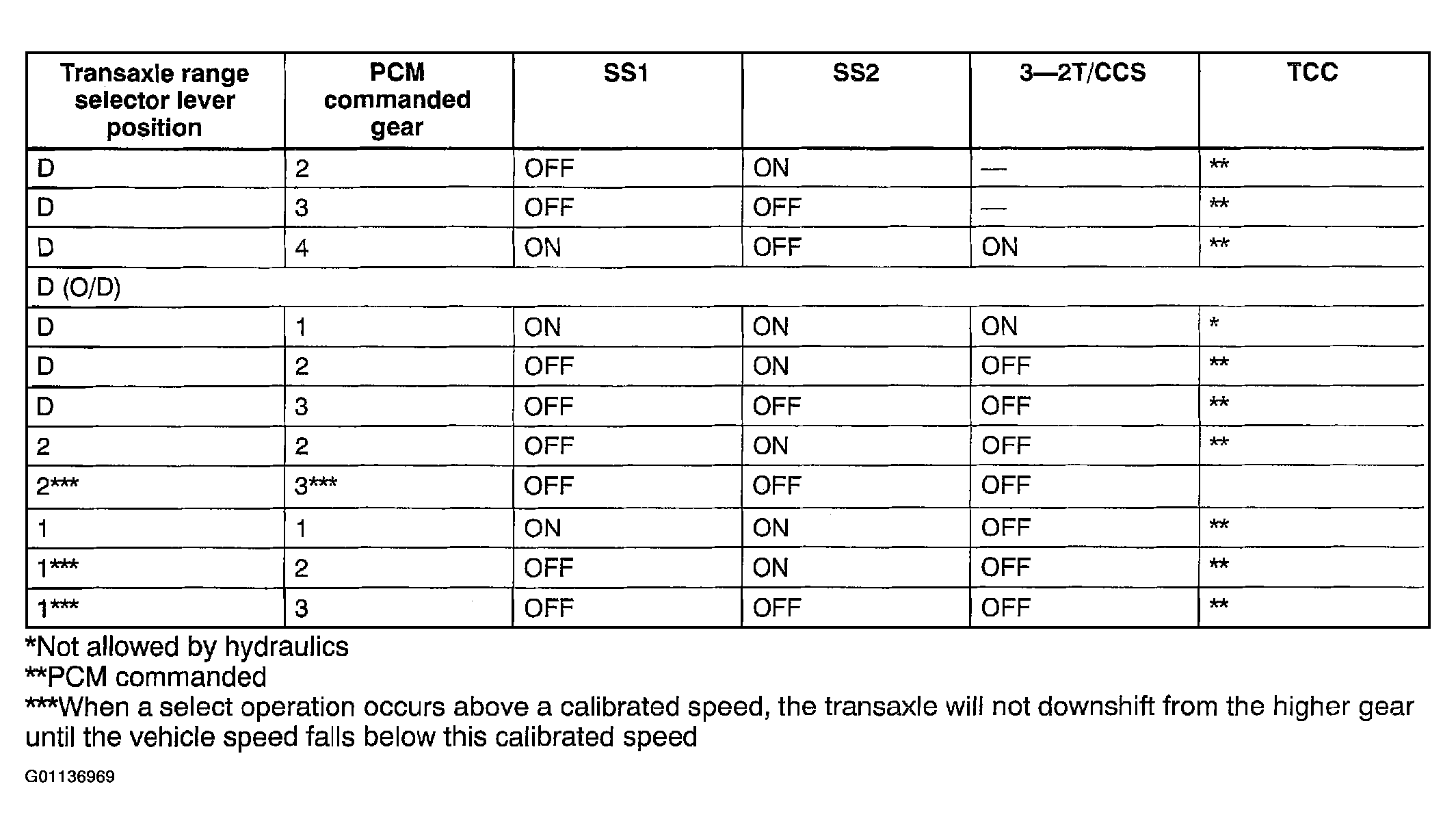

Fig 2: Solenoid Valve Operation Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
