Solenoid Body Description: Description

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

The PCM controls the operation of the LA4A-EL transaxle through wiring to the solenoid body mounted on the control valve body.
The solenoid body contains the following:
- Transaxle Fluid Temperature (TFT) Sensor.
- Electronic Pressure Control (EPC) Solenoid.
- Shift Solenoid No.1 (SS1).
- Shift Solenoid No.2 (SS2).
- Torque Converter Clutch (TCC) Solenoid.
- 3-2 Timing/Coasting Clutch Solenoid (3-2T/CCS).

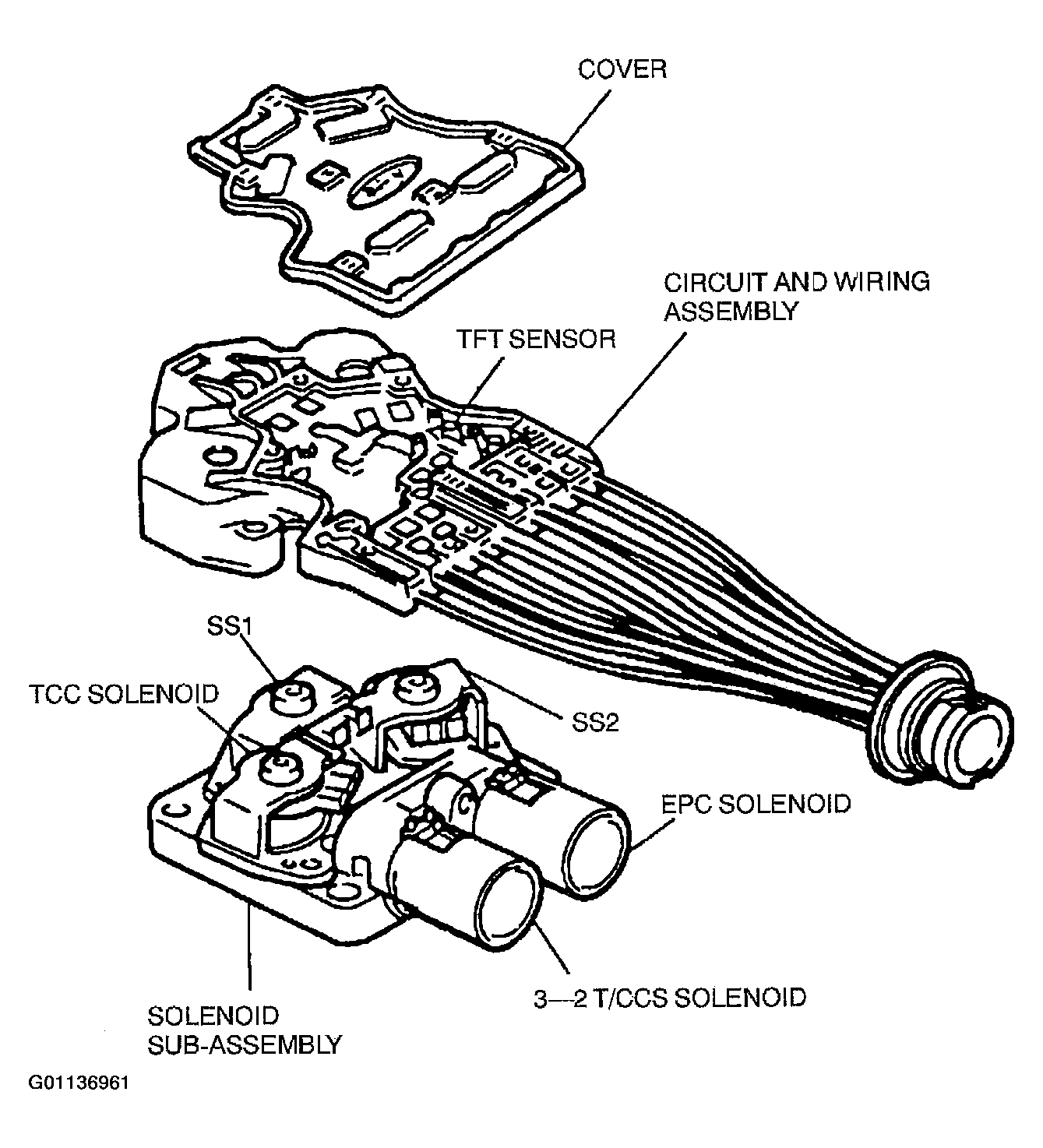

Fig 1: Identifying Solenoid Body Components

Courtesy of MAZDA MOTORS CORP.
