Shift Solenoids No. 1 And No. 2 (SS1, SS2) Description: Description

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

SS1 and SS2 provide gear selection of first through fourth gears by providing ON/OFF pressure control to the shift valves.

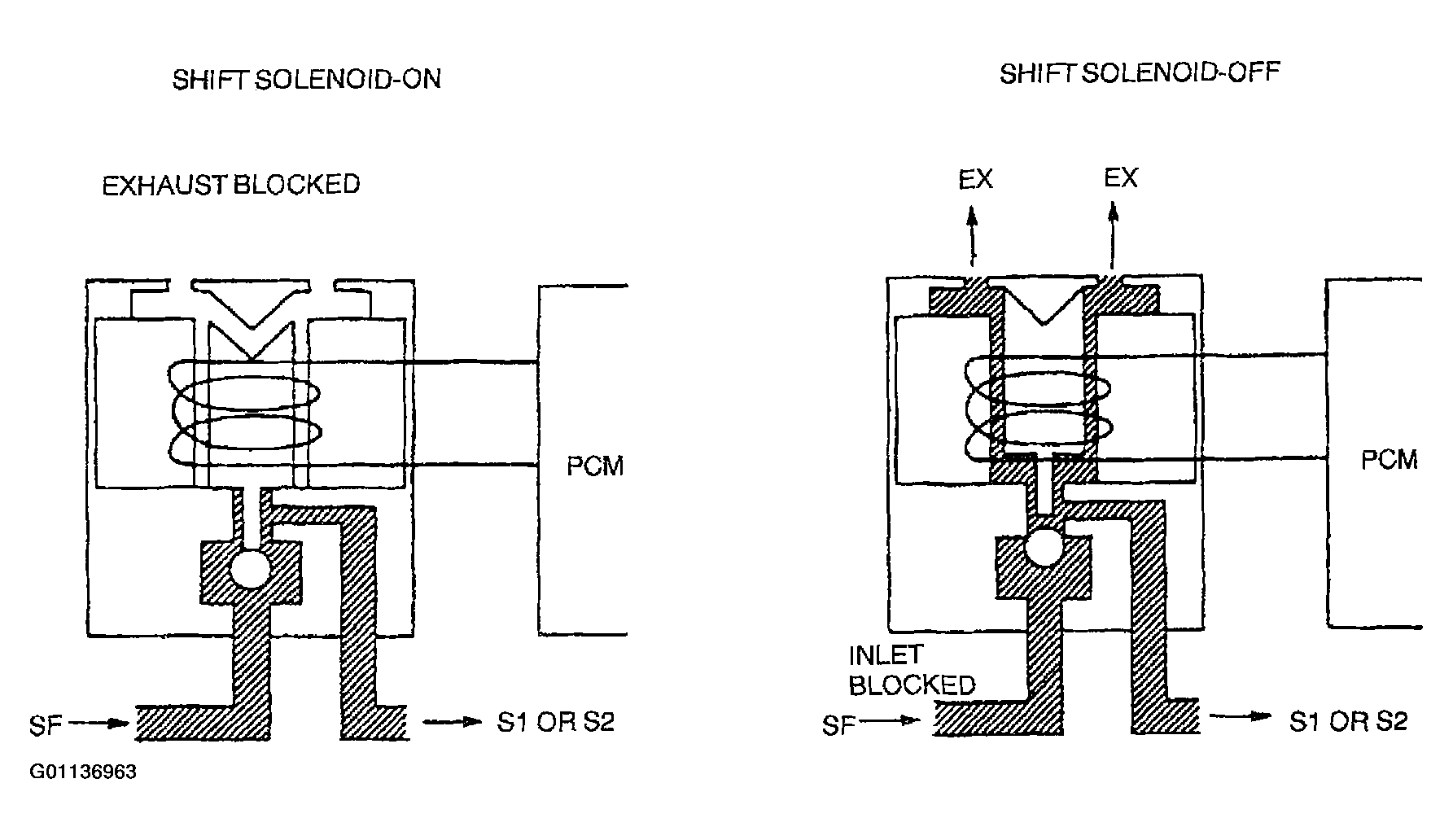

Fig 1: Identifying Shift Solenoid's (SS1, SS2) On & Off Positions

Courtesy of MAZDA MOTORS CORP.
