Electronic Pressure Control (EPC) Solenoid Description: Description
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

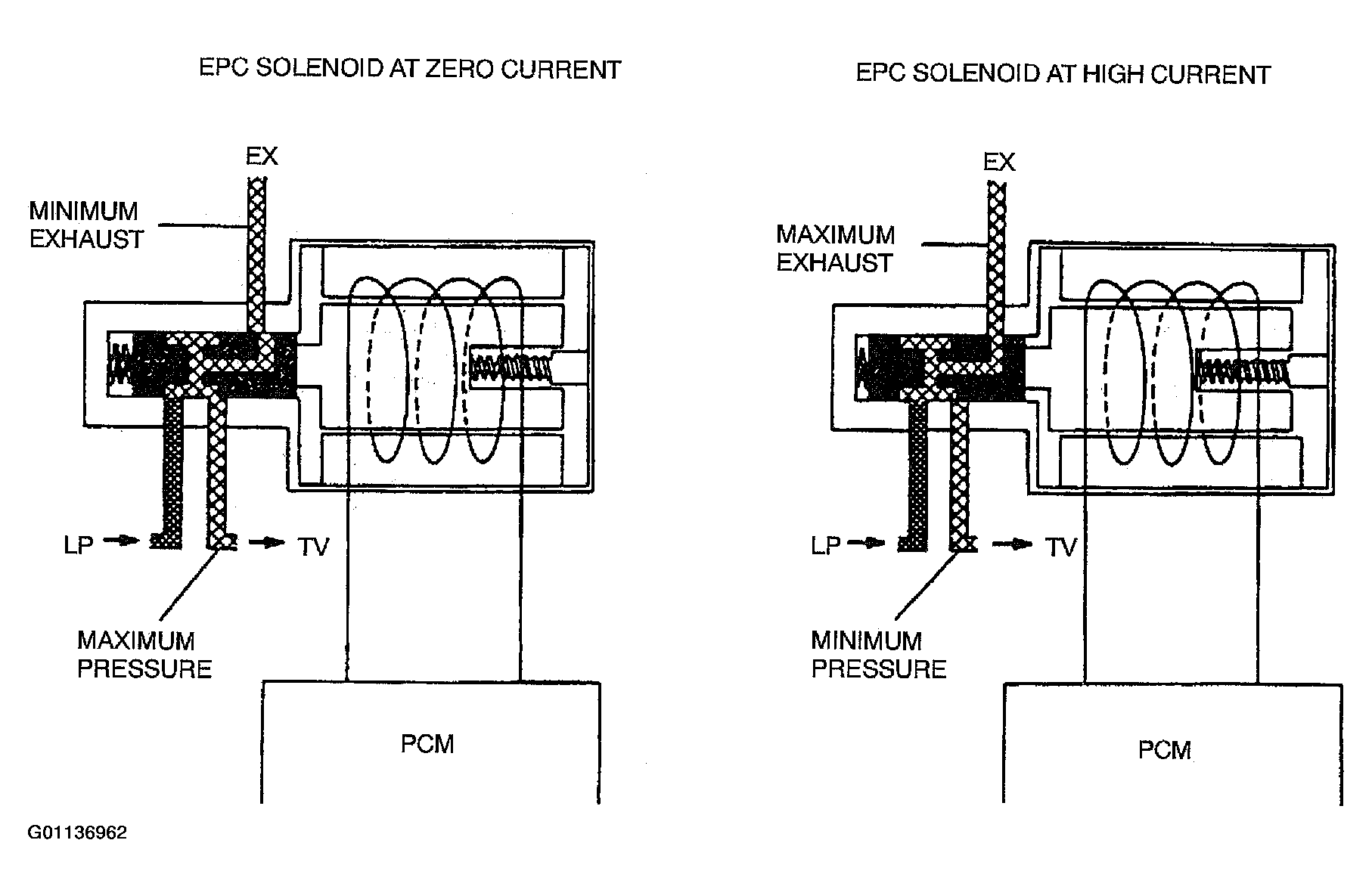

- The EPC solenoid is a variable force style solenoid. This type solenoid is an electro-hydraulic actuator combining a solenoid and a regulating valve.
- EPC solenoid regulates line pressure. This is controlled by producing a resisting pressure to the main regulator circuit. The LP pressure controls clutch application pressures.
