3-2 Timing/Coasting Clutch Solenoid (3-2T/CCS) Description: Description

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

The 3-2T/CCS is a variable force solenoid. This type of solenoid is an electro-hydraulic actuator combining a solenoid and a regulating valve.
It supplies pressure to the S3 circuit to control the release of the direct clutch during a 3-2 downshift. This solenoid also regulates the pressure in the S3 circuit to control the application and release of the coasting clutch.

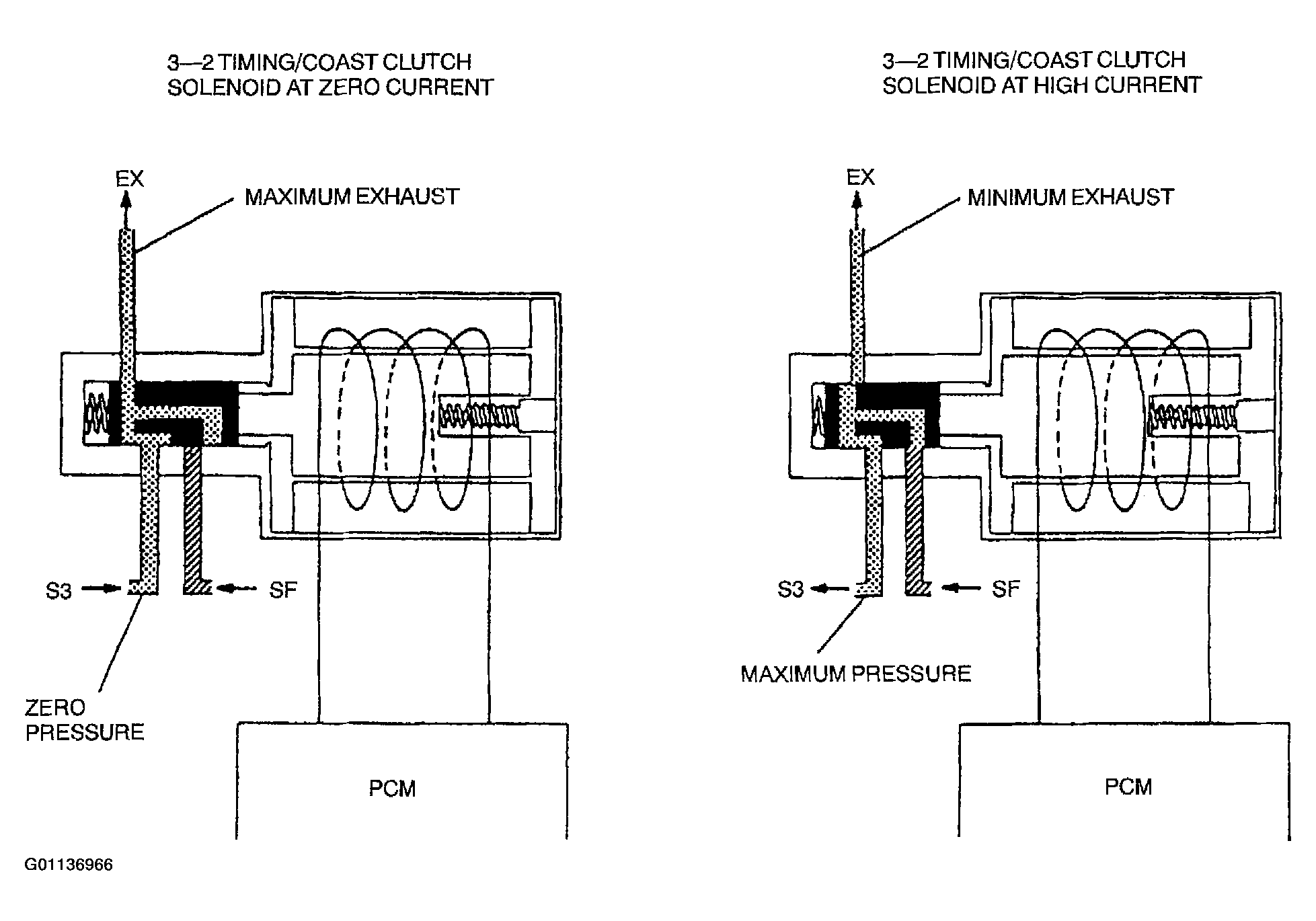

Fig 1: Identifying 3-2 Timing/Coasting Clutch Solenoid Positions

Courtesy of MAZDA MOTORS CORP.
