Resistance/Continuity Test-Transaxle Fluid Temperature (TFT) Sensor

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set an ohmmeter to the 1,000 ohm range.
  2. Connect the positive lead to the + TFT jack.
  3. Connect the negative lead to the - TFT jack.
    Fig 1: Connecting Ohmmeter To Tester
    G01136993Courtesy of MAZDA MOTORS CORP.
  4. Record the resistance. Resistance will vary with temperature.
  5. Refer to the chart below for the valves.
    • If out of specified range, refer to the DTC troubleshooting. See DIAGNOSTIC TESTS .

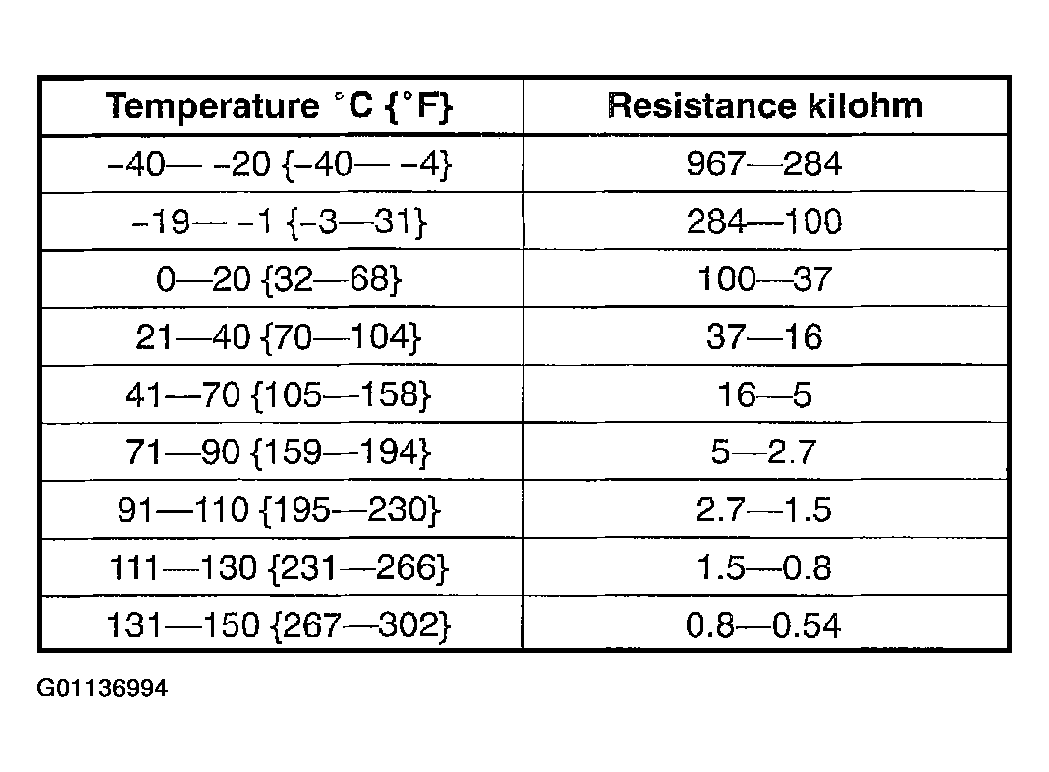

      Fig 2: Resistance & Temperature Chart
      G01136994Courtesy of MAZDA MOTORS CORP.
