Removing The Transaxle Tester And Clearing Diagnostic Trouble Code (DTC)

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not attempt to pry off connectors with a screwdriver. This will cause damage to connector and could result in a transaxle problem.

Disconnect the SSTs from the transaxle connector and TSS connector.

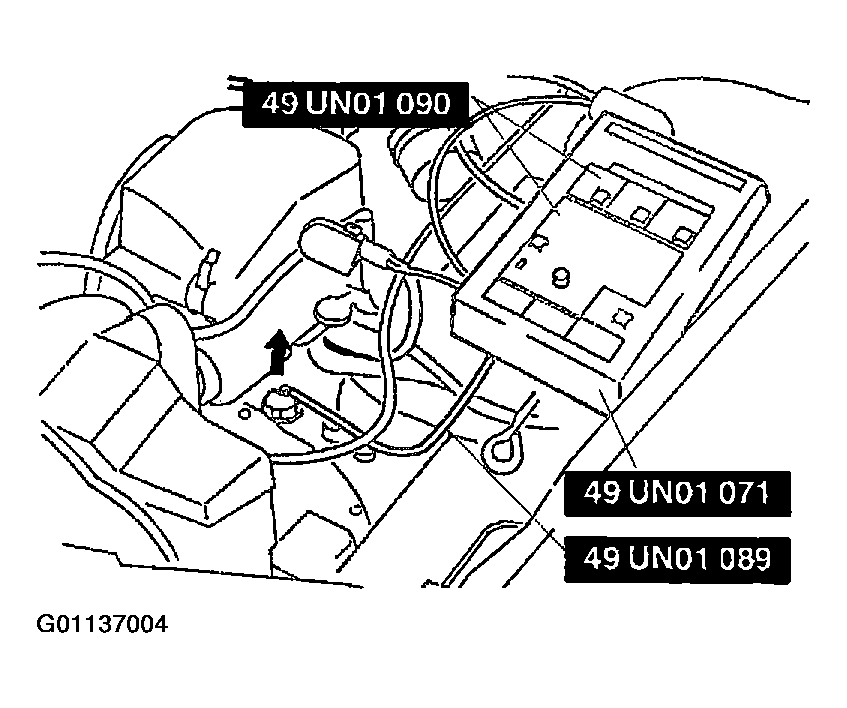

Fig 1: Disconnecting SST's From Transaxle
Courtesy of MAZDA MOTORS CORP.
Reinstall the emission harnesses. Verify the connections by pulling up on the harness.
Disconnect the transaxle tester power lead from the vehicle.

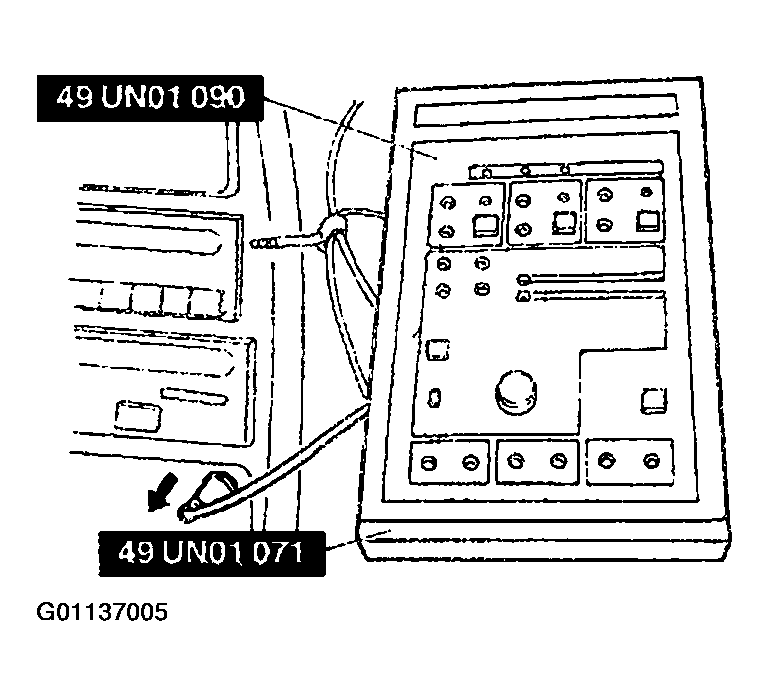

Fig 2: Disconnecting Transaxle Tester Power Lead
Courtesy of MAZDA MOTORS CORP.
Erase all DTCs. See DIAGNOSTIC TESTS .
Rerun the On-Board Diagnostic Test. See DIAGNOSTIC TESTS .
Based on the transaxle tester results, proceed to the appropriate segment of this section for transaxle or electrical/wiring service.
Repeat the test with the transaxle tester to confirm repair.
