Removing The Transaxle Tester And Clearing Diagnostic Trouble Code (DTC)

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not attempt to pry off connectors with a screwdriver. This will damage the connector and could result in a transaxle problem.
  1. Disconnect the transaxle tester from the transaxle range (TR) switch connector.

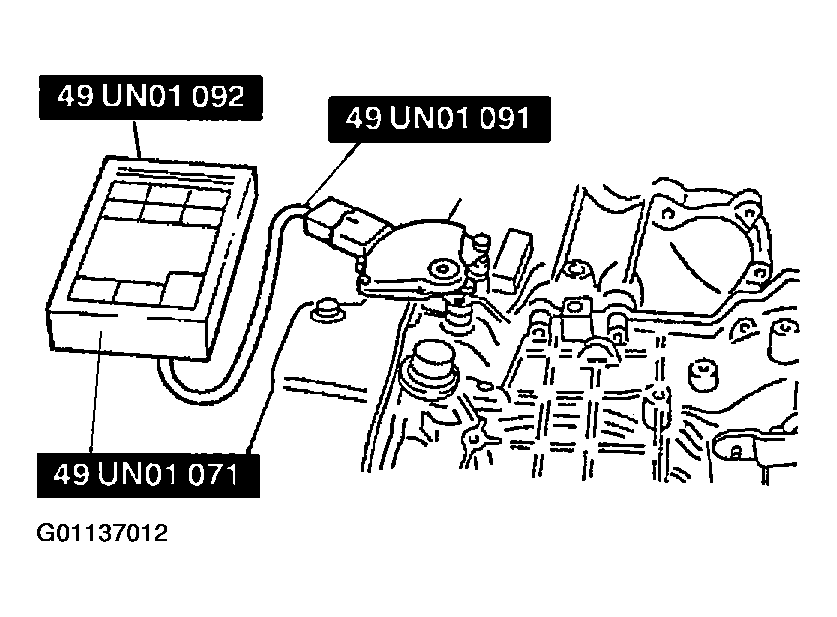

    Fig 1: Disconnecting Transaxle Tester
    G01137012Courtesy of MAZDA MOTORS CORP.
  2. Reinstall the emission harness. Verify the connection by pulling up on the harness.
  3. Disconnect the transaxle tester power lead from vehicle.

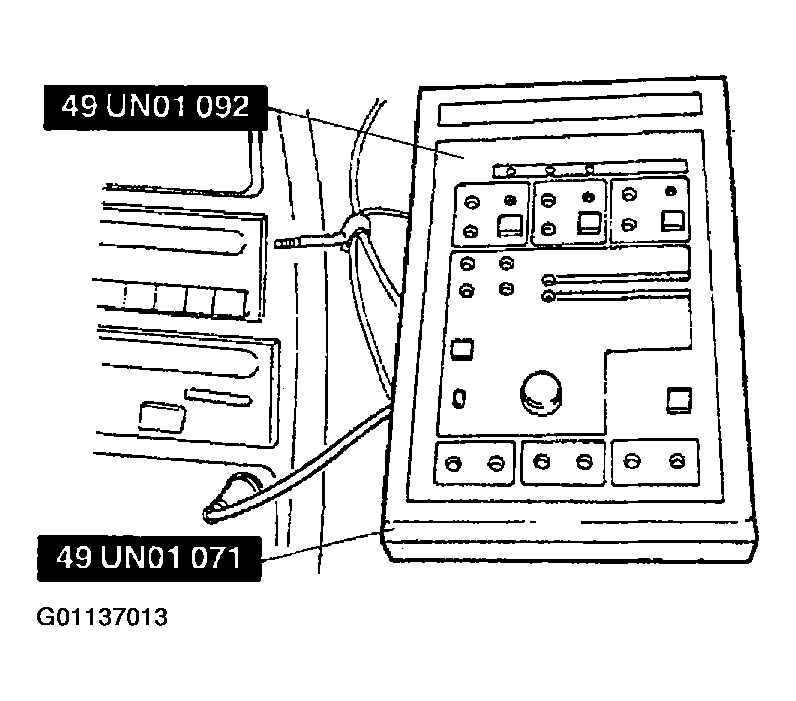

    Fig 2: Disconnecting Transaxle Tester Power Lead
    G01137013Courtesy of MAZDA MOTORS CORP.
  4. Erase all DTCs.
  5. Rerun the on-board diagnostic test.
  6. Verify repair.
