Drive Plate Mounting Bolts Installation Note
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
- Remove any old locking compound from the bolt threads and bolt holes, and apply new locking compound to the bolt threads.

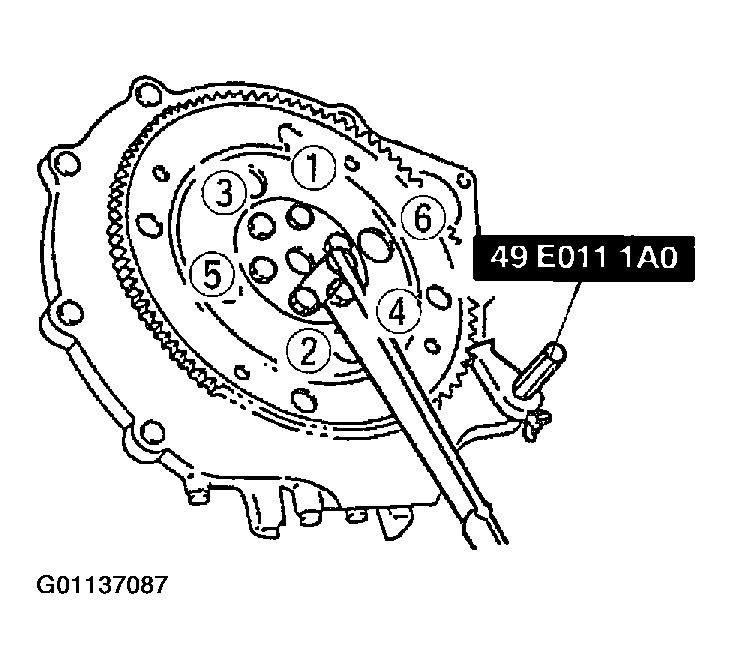

- Set the SST or equivalent against the drive plate.
- Tighten the drive plate mounting bolts in two or three steps in the order shown.
Tightening torque
97-102 N.m {9.8-10.5 kgf.m, 70.9-75.9 ft.lbf}
