Transaxle Removal Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Do not allow the transaxle to fall from the jack.
  • Verify that the transaxle is securely supported by the jack. If the transaxle should fall, serious injury or death and damage to the vehicle could result. Before removing the transaxle, make sure that the jack is securely supporting it.
  1. Loosen the SST  (engine support) and lean the engine toward the transaxle.

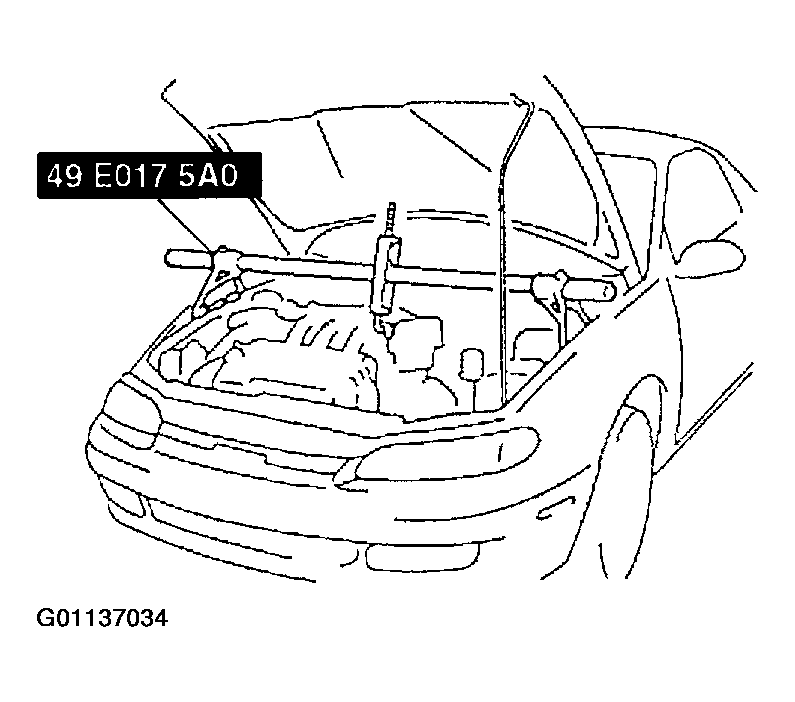

    Fig 1: Supporting Engine
    G01137034Courtesy of MAZDA MOTORS CORP.
  2. Support the transaxle on a jack.

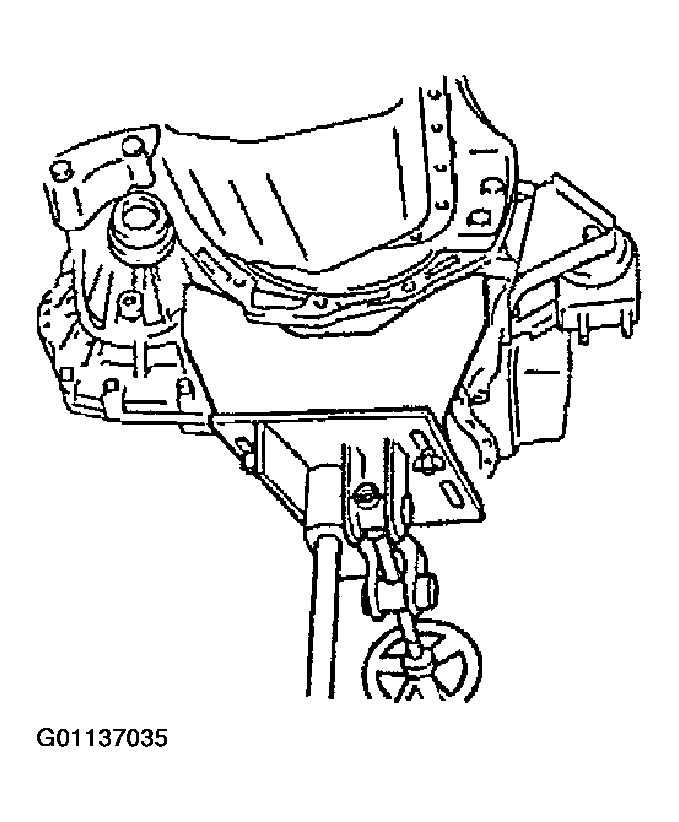

    Fig 2: Supporting Transaxle On Jack
    G01137035Courtesy of MAZDA MOTORS CORP.
  3. Remove the transaxle mounting bolts.
  4. Remove the transaxle.
