Engine Mount Member Installation Note
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

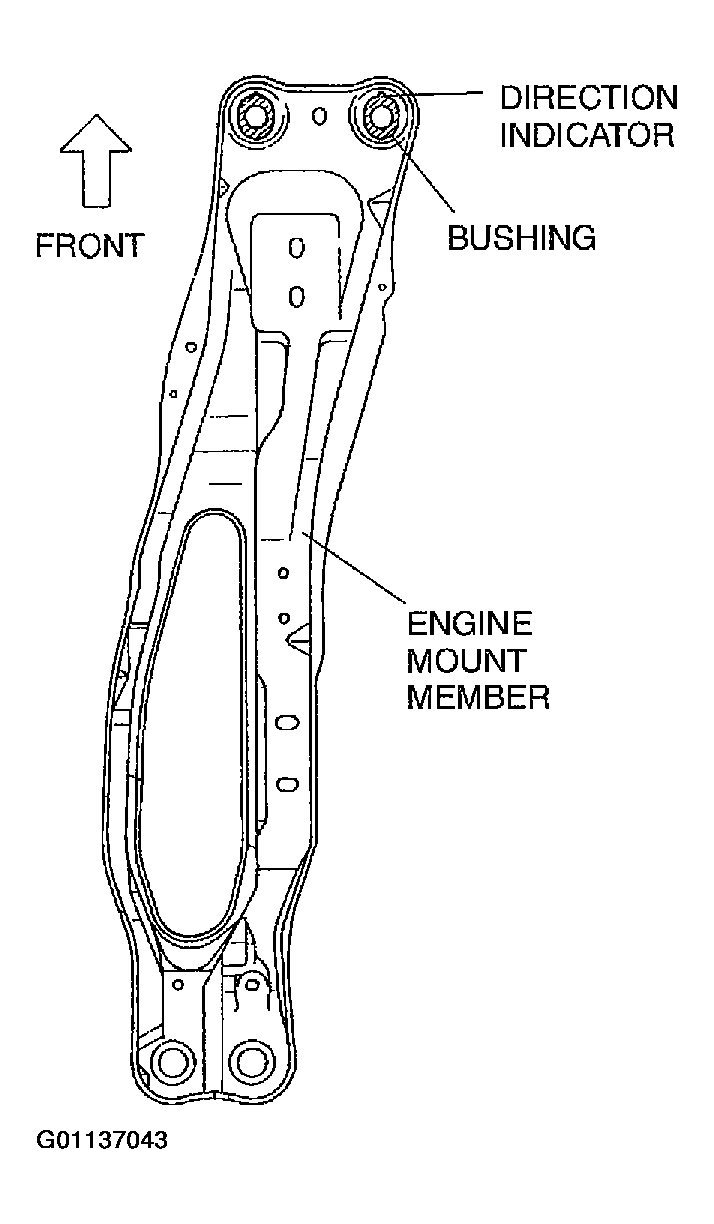

- Position the direction indicator on engine mount member with bushings facing toward the front side, and install the bushings onto the engine mount member.
- To install the engine mount member, put the No. 2 engine mount stud bolts through the engine mount member installation holes.
- Install the engine mount member bolts A and nuts A.
Tightening Torque
A: 67-93 N.m {6.8-9.5 kgf.m, 50-68 ft.lbf}
- Loosely tighten the No. 2 engine mount nuts B.
- Remove the SST (engine support).
- Tighten the No.2 engine mount nuts B.
Tightening Torque
B: 75-104 N.m {7.6-10.7 kgf.m, 55-77 ft.lbf}
