Clutch Pedal Height
WARNING: This page is about a different car, the 2001 Mazda Tribute, 2001 Mazda Protege, and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

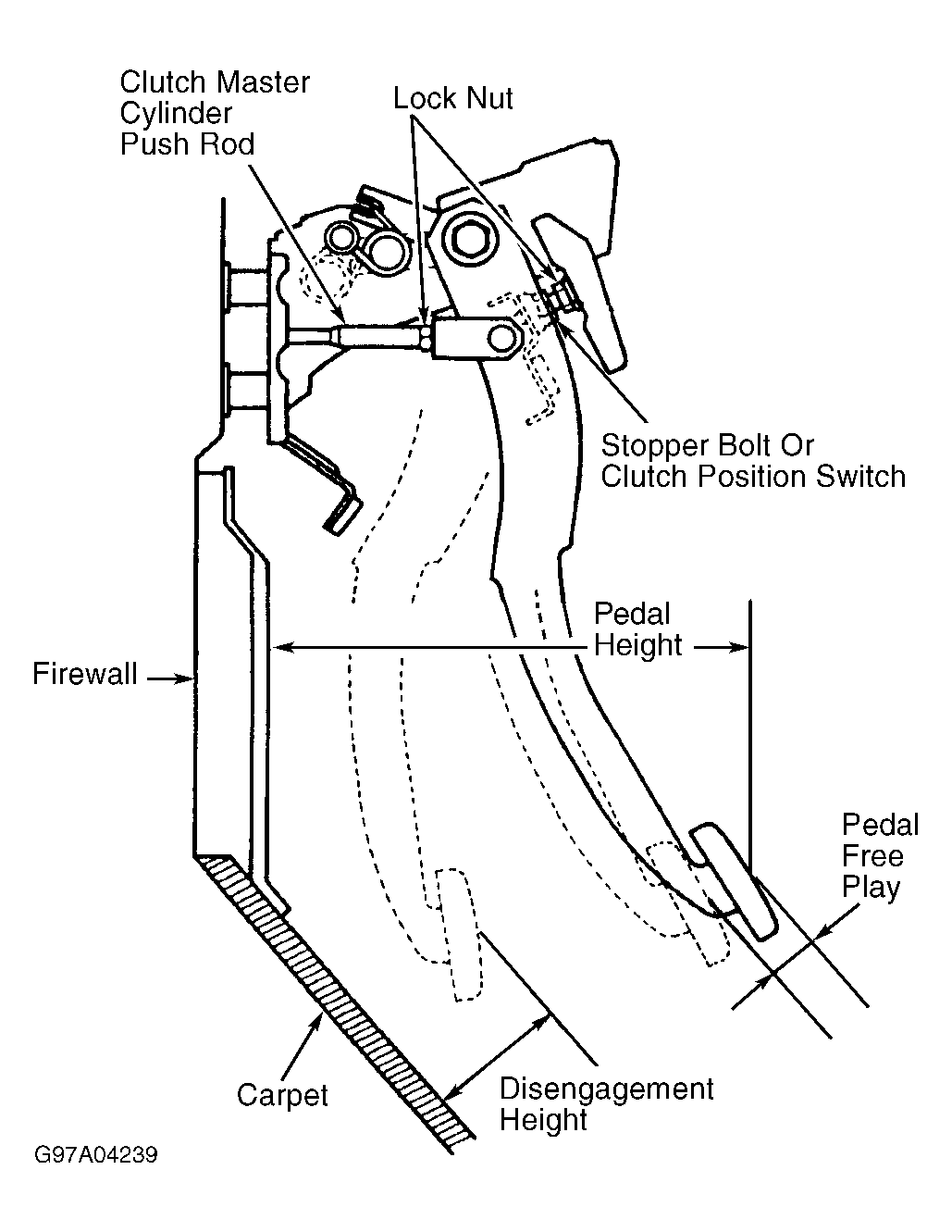

Measure clutch pedal height from upper center of pedal pad to carpet. See Fig 1. See CLUTCH PEDAL SPECIFICATIONS table. If pedal height is not within specification, adjust by loosening lock nut and rotating stopper bolt or clutch position switch as necessary. Tighten lock nut.
CLUTCH PEDAL SPECIFICATIONS
| Application | In. (mm) | |
|---|---|---|
| Pedal Height | ||
| Protege | 8.27-8.46 (210-215) | |
| 626 | 7.64-7.95 (194-202) | |
| Free Play | ||
| Protege | 0.03-0.13 (.7-3.5) | |
| 626 | 0.04-0.11 (1-3) | |
| Disengagement Height (Minimum) | ||
| Protege | 1.8-2.1 (45-55) | |
| 626 | 1.5 (38) | |
