Fuel gauge sender unit stay removal note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • A deformed fuel gauge sender unit arm could cause the fuel level to be indicated incorrectly. When holding the fuel gauge sender unit stay, grasp any part other than the arm portion.
  1. Rotate the fuel gauge sender unit stay counter-clockwise to remove it.

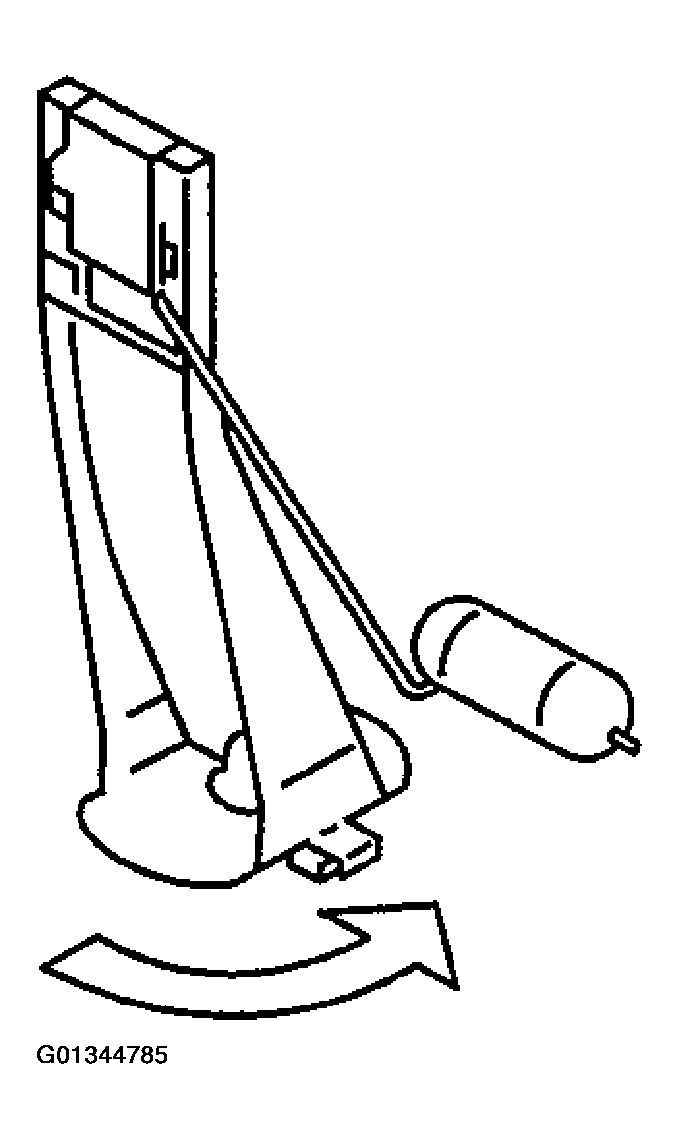

    Fig 1: Rotating Fuel Gauge Sender Unit Stay Counter-Clockwise
    G01344785Courtesy of MAZDA MOTORS CORP.
