Fuel Gauge Sender Unit (Main)

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the float to the topmost and bottommost positions, and verify that the resistance between terminals A and B of the fuel gauge sender unit (main) and the position of the float are as shown in the figure.
    • If they are not as shown in the figure, replace the fuel gauge sender unit (main).

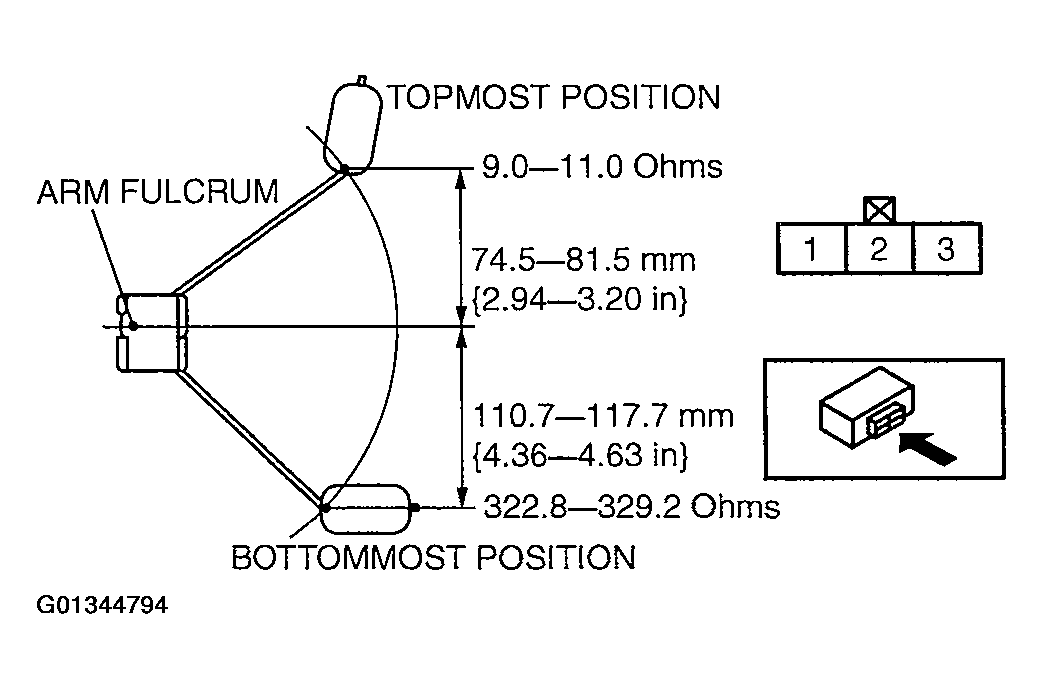

    Fig 1: Verifying Resistance Between Fuel Gauge Sender Unit (Main) & Position Of Float
    G01344794Courtesy of MAZDA MOTORS CORP.
