Evaporative Emission (EVAP) Control System Location Index

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

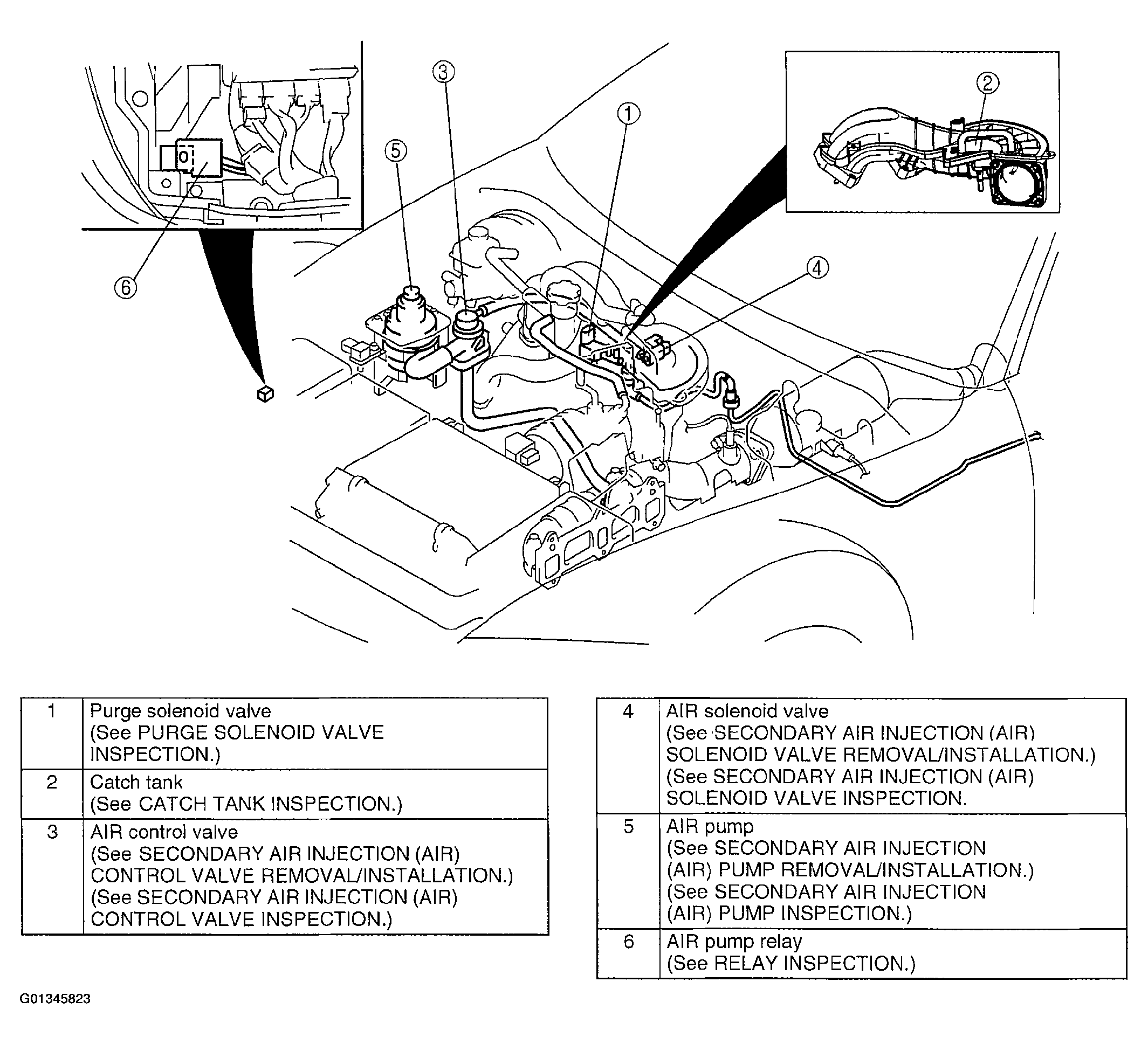

Fig 1: Evaporative Emission Control System Location Index - Engine Compartment Side

Courtesy of MAZDA MOTORS CORP.

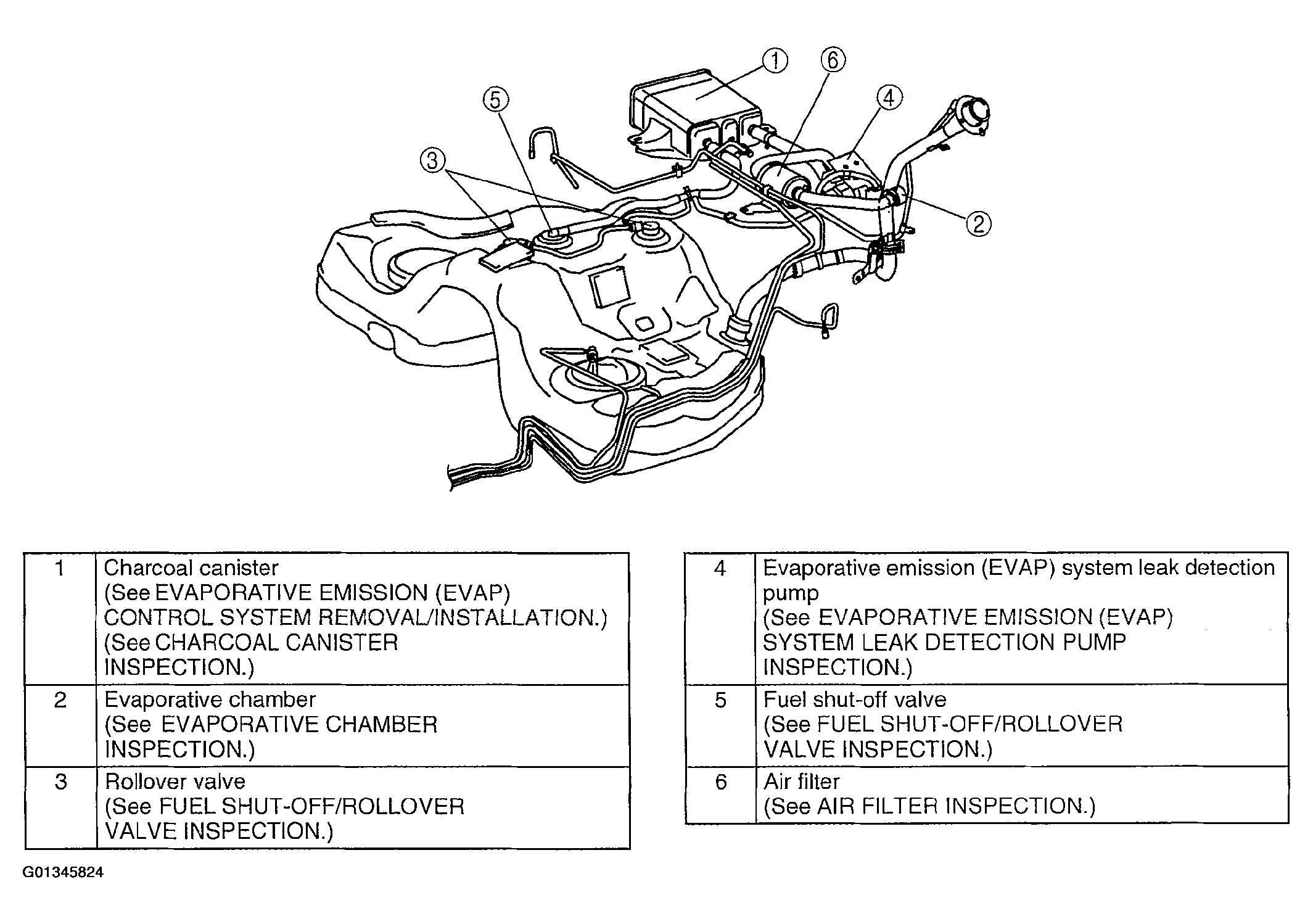

Fig 2: Evaporative Emission Control System Location Index - Fuel Tank Side

Courtesy of MAZDA MOTORS CORP.
