Driver's Side

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  3. Remove the dashboard garnish. (See DASHBOARD GARNISH REMOVAL/INSTALLATION .)
  4. Pull the driver-side demister grille upward and detach clip A.
  5. Pull the driver-side demister grille outward and remove it.
  6. Install in the reverse order of removal.

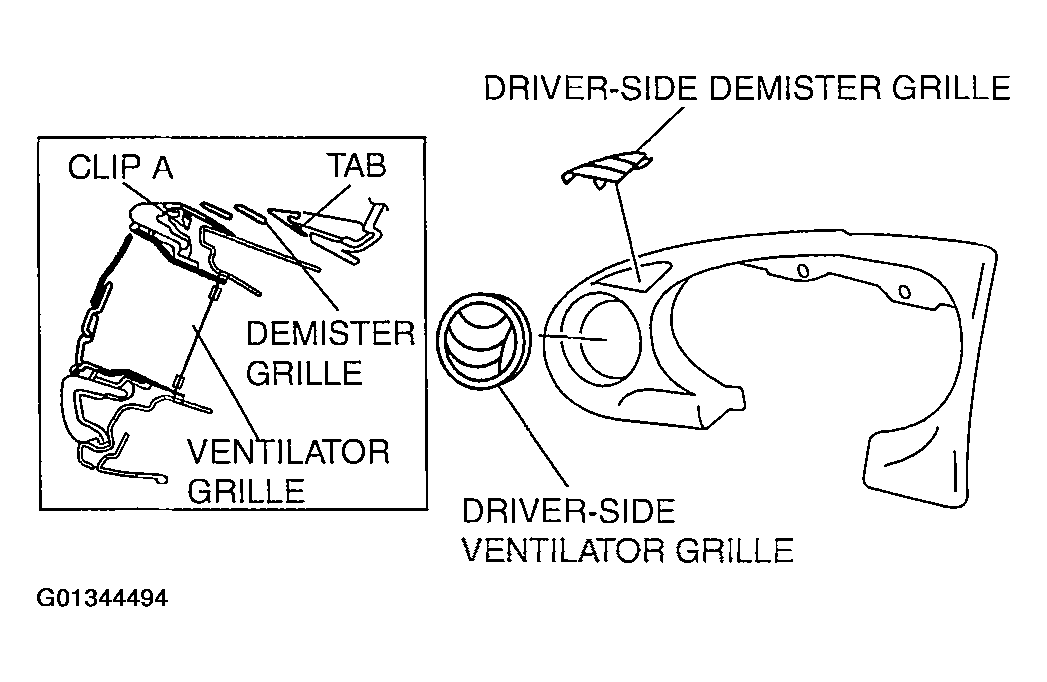

    Fig 1: Removing/Installing Ventilator Grille
    G01344494Courtesy of MAZDA MOTORS CORP.
