Ventilator Grille Removal/Installation: Center

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  2. Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION .)
  3. Remove the screws.
  4. Pull the ventilator grille outward and detach clips A and B.
  5. Detach tab C and remove the ventilator grille.
  6. Install in the reverse order of removal.

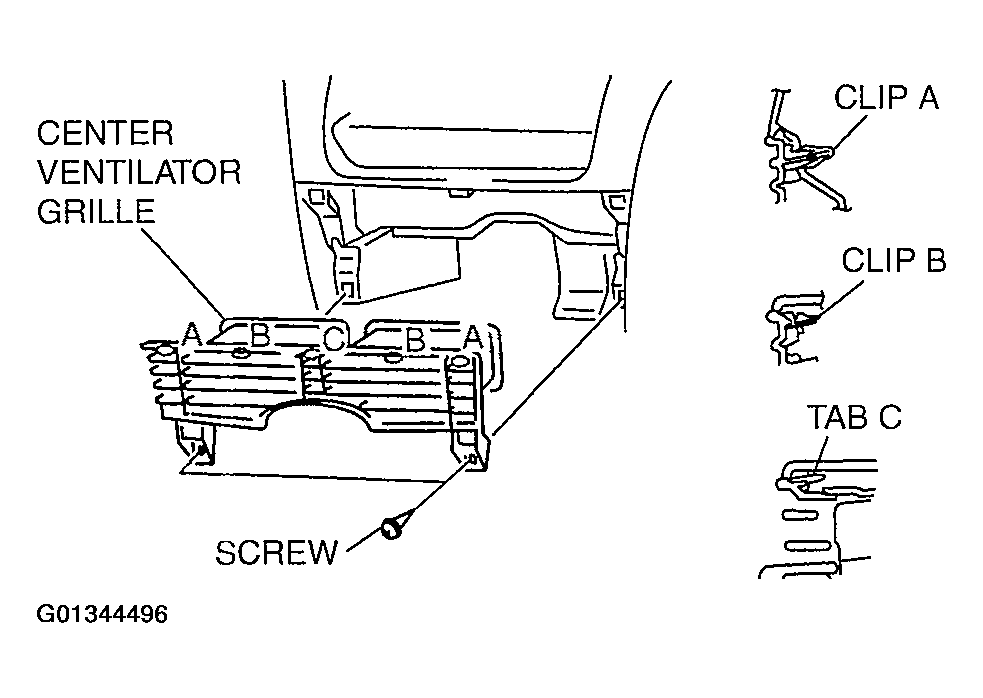

    Fig 1: Removing Ventilator Grill
    G01344496Courtesy of MAZDA MOTORS CORP.
