Rear Pillar Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION .)
  2. Remove the inner scuff plate. (See INNER SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
  4. Remove the cap using a fastener remover. (Vehicles with curtain air bags).
  5. Remove the bolt. (Vehicles with curtain air bags).
  6. Remove the fastener.
  7. Detach clips A and locator pin B, using a fastener remover, and remove the rear pillar trim.
  8. Install in the reverse order of removal.

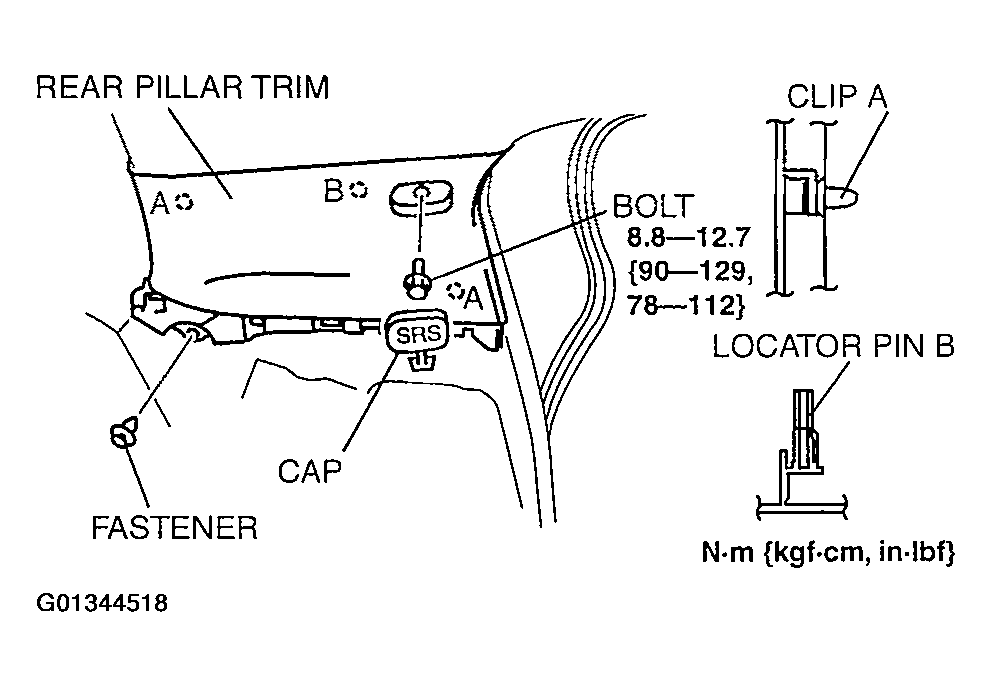

    Fig 1: Removing/Installing Rear Pillar Trim
    G01344518Courtesy of MAZDA MOTORS CORP.
