Rear Door Upper Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper anchor of the front seat belt. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  2. Remove the rear door lower trim. (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION .)
  3. Pull the rear door upper trim outward and detach clips A, B and locator pins C from the body.
  4. Remove the rear door upper trim.
  5. Install in the reverse order of removal.

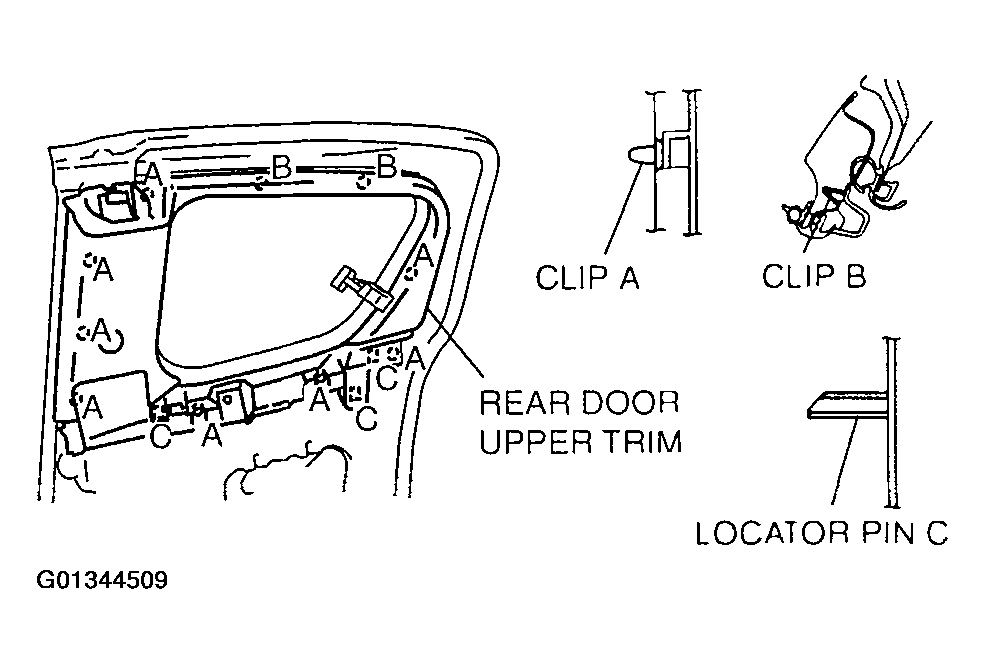

    Fig 1: Removing/Installing Rear Door Upper Trim
    G01344509Courtesy of MAZDA MOTORS CORP.
