Torque Specifications
WARNING: This page is about a different car, the 2004 Mazda MPV, 2003 Mazda MPV, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | ||
|---|---|---|---|
| Drain Plug | 29-40 (39-54) | ||

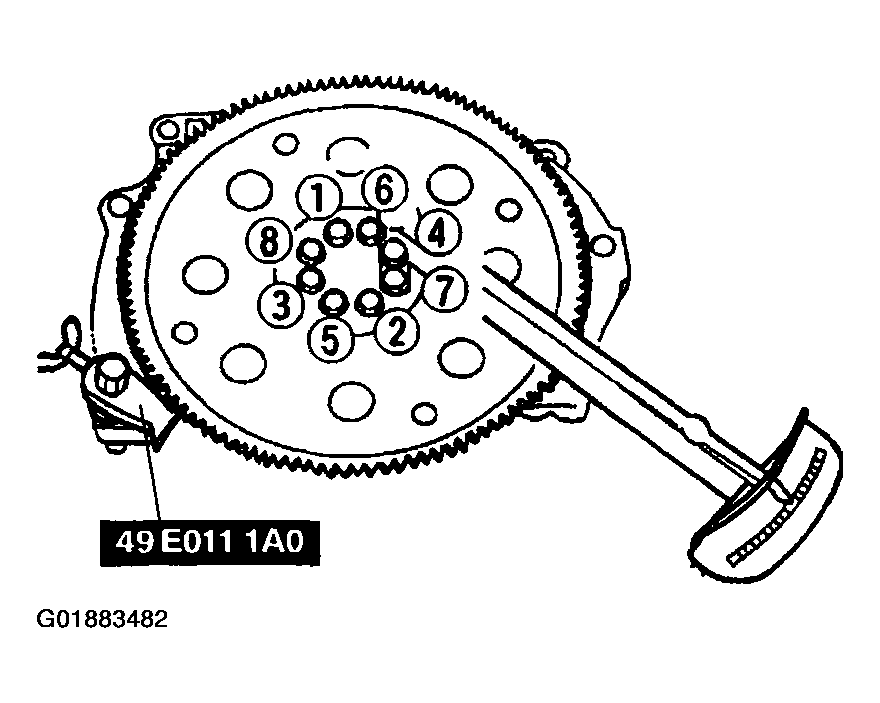

| Drive Plate Bolt (1) | 54-64 (73-87) | ||
| Engine Mount Member Bolt A | 47-65 (64-89) | ||
| Engine Mount Member Bolt B & C | 50-68 (67-93) | ||
| Torque Converter Nut | 25-45 (34-61) | ||
| Transaxle Mounting Bolt | 28-38 (37-52) | ||
|
|||
